Jabsco # 59530-0000 Magnetic Drive Circulation Pump
Jabsco # 59530-0000

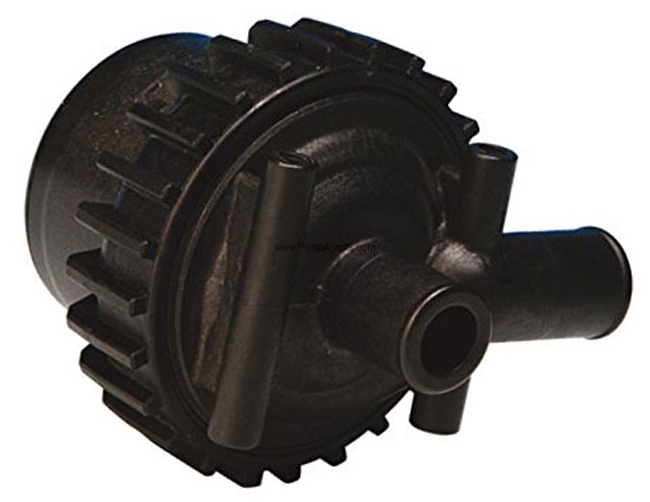

Jabsco catalog # 59530-0000, Magnetic Drive Circulation Pump and Motor unit. Pump is Close Coupled to a 8-24 Volts DC Motor. Ports are 3/4 Inch Hose Barb.
Price : $ 0.00
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 59530-0000 is a magnetic drive circulation pump with a 3/4 Inch Hose Barb Ports, coupled to a 8-24 Volts DC Motor. This Jabsco Magnetic Drive Brushless DC Pump offers exceptional life and reliability. The Motor voltage is 8-24V DC, fuse 2.5 amp. The motors last in excess of 10,000 hours, and the seal-less pump heads remove any chance of leaks.
Do not use this pump for petrol, petroleum products, or fluids with a flashpoint below 37 degrees C .
Features :
Product Specs :
Up to 5.5 GPM at 1.5 psi
Variable flow - 5 speed control
Ignition protected
Meets EMC requirements
Connections for 3/4 Inch bore hose
Continuously rated
Pumps water at 176 degrees F
Handles aggressive liquids
Long life brushless DC motor
Parts and Accessories for Jabsco model 59530-0000
Applications
This pump is versatile and will handle high temperatures and chemicals and is designed for continuous use. Fit this pump in a dry position, as close as possible to the liquid being pumped. The pump must be installed below the lowest liquid level. Use 3/4 Inch spiral reinforced hose or semirigid pipework systems. The pipe runs should be as straight and as short as possible, avoiding rising and dipping over obstructions.
