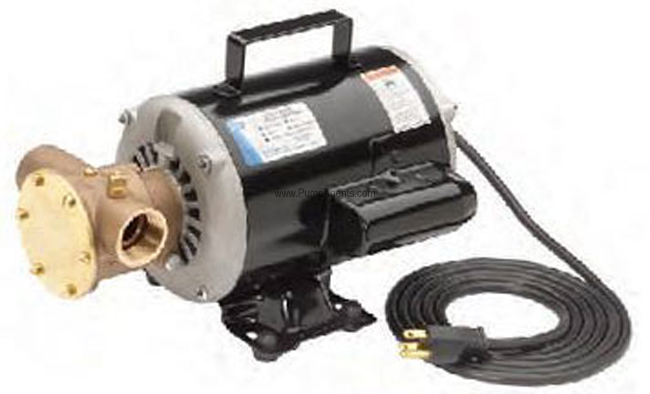

Jabsco # 6050-0003 Utility Pump - 3/4 HP 115/230Volts ODP Nitrile
Jabsco # 6050-0003
Jabsco catalog # 6050-0003, Bronze Utility Pump and Motor unit. Bronze Construction, with a Nitrile Impeller and Lip Type Seal. Pump is Close Coupled to a 3/4 Horsepower, 1725 RPM, 115/230 Volts, Single Phase, ODP (Open Drip Proof) Motor. Comes with a 8 foot cord and plug. Ports are 1 Inch NPT Internal.
Price : $ 1018.17
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 6050-0003 is a utility Bronze Flexible Impeller Pump with a Nitrile Impeller, Lip Type Seal, 1 Inch NPT Female Ports, coupled to a 3/4 Horsepower, 1725 RPM, 115/230 Volts, 1 Phase, ODP, 60 HZ Motor, with a 8 foot cord and plug. For general transfer pumping using 115V AC power where self-priming, 23 gpm flow and debris tolerance are required. Oil-resistant nitrile impeller is standard. Do not run dry. Lack of liquid will damage impeller. Pump maybe mounted in any position without loss of efficiency; however, it is suggested that the pump head be down if vertical mounting is desired. The rotation of the motor shaft determines the location of the pump intake and discharge ports. Intake is on right when looking at pump end cover. PRESSURES - For continuous operation, discharge pressure should not exceed 20 psi. SELF-PRIMING - Pump will produce a suction lift approaching 10 feet when dry and a lift up to 22 feet when primed. TEMPERATURES Nitrile impeller supplied in pump is recommended for liquid temperatures of 50 degrees to 180 degreesF (10 degrees to 83 degreesC).
Features :
Product Specs :
Self Priming: Will lift fluid up to 22 feet when wet
Will Not Air Lock: Pump will continue to operate even when air passes through the system
Viscous Liquids Handling: Will easily pump thin or thick liquids
Pulsation Free Flow: Delivers a smooth even flow
Non-Shear Action: Will handle delicate fluids
Hard Solid Handling: Passes hard solids or abrasives with minimal wear or damage
Few Moving Parts: Easy to maintain so less downtime
Compact: Will provide high flows from a small size pump
Competitive: Lower cost installation and maintenance than other competing pump types
Parts and Accessories for Jabsco model 6050-0003
Seal Kit :
Catalog # 90058-0003, Service Kit Nitrile
Price: $ 186.45
Impeller :
Catalog # 6056-0003, Impeller Nitrile
Price: $ 152.10
Shaft Seal :
Catalog # 92700-0080, Lip Seal
Price: $ 61.83
Casing frozen or cracked ? New Pump Casing :
Catalog # 6054-0000, Body
Price: $ 304.81
Applications
NOTICE Do not pump solvents, thinners, highly concentrated organic acids. Impeller and pump damage may occur. TYPICAL APPLICATIONS MARINE Bait Tank Circulation; Washdown, Utility Dockside Pump, INDUSTRIAL Industrial Filling Systems; Utility Shop Pump; Transfer Gum Arabic, Transfer Distilled Water; Recharge Water Softeners; Ice Water Recirculation; Hydrostatic Pressure Testing; Sump Pumping. FOOD, BEVERAGE and DAIRY Circulate Cooling Water; Defrost Refrigeration Coils; Fill Drums; Wash Down Equipment and Floors; Utility Pump. HOME Fill and Empty Tubs, Pools; Empty Basements and Cesspools; Water Systems; Water Lawns and Gardens; Remove Water from Low Areas; Recharge Water Softeners. PLUMBING Empty Clogged Drains; Empty Sumps, Smks and Tubs; Pump Out Water Closets. FARM Fill Tractor Tires, Water Tanks; Pump out Silo Pits ; Flush and Clean Animal Pens. CONTRACTORS Remove Water from Excavations; Supply Water to Mortar Boxes; Cement Mixing; Washdown Equipment.
