Jabsco # SP2701-1007 Single Seal Trim Kit Viton

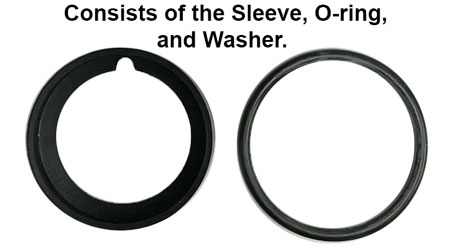

The Jabsco seal # SP2701-1007 is a Single Seal Trim Kit consisting of the Viton Sleeve (fitted to rotor), the Viton Seal Trim O-Ring, and the Washer under Seal Rotary Face , used in Jabsco size 55320 rotary lobe pumps. These are high quality Viton elastomers which make up the elastomeric part of the mechanical shaft seal and are designed to prevent leakage of product from the pump into the atmosphere and to prevent contamination by airborne micro-organisms. This seal design is unique to Jabsco and has a number of features which are a major benefit to the user. The Jabsco pump seal is specially developed to fully expose the sealing faces and the joints around the seal to the fluid, and is crevice-free, with no metal parts in fluid contact, and no moving parts or springs in fluid contact for highest standards of CIP and SIP capability. This ensures good circulation of product to avoid stagnant areas where bacteria can multiply, with good cooling of the seal faces and maximum flow of cleaning fluids around the seal. This design also ensures that, when the pump is stopped, fluid can drain from the seal area.
