Jabsco # VR050-1122 Diesel Refueling Transfer Pump

Jabsco Pump VR050-1122

Jabsco # VR050-1122

Jabsco catalog # VR050-1122, Diesel Refueling Transfer Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 24 Volt DC Motor. Ports are 1 Inch Hose Barb.

Price : $ 0.00

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

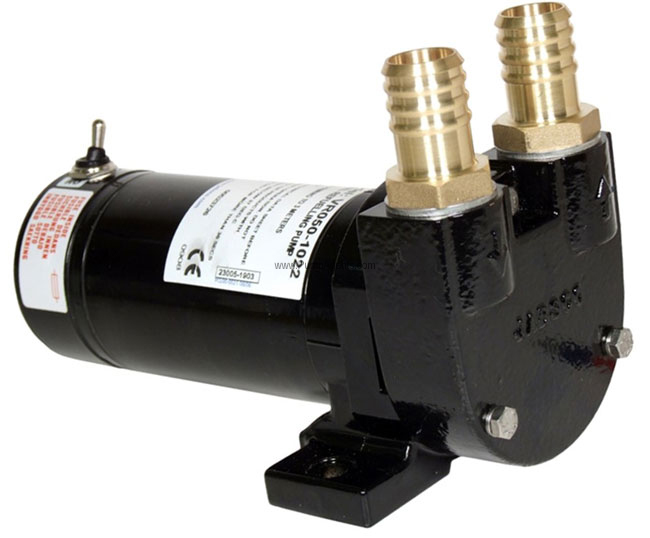

The Jabsco VR050-1122 is a cast iron gear pump with a Nitrile Lip Seal, 1 Inch Hose Barb Ports, coupled to a 24 Volt DC Motor. This Jabsco Diesel Refueling Pump has a pumping capacity of 13 GPM (50 LPM), and is rated for continuous operation, and are widely used in the demanding off-road construction sector, so reliability is assured. Do not dry run.

Do not pump gasoline, solvents, thinners or other flammable liquids. To do so can cause an explosion.

Features :

Pump Body:
Cast Iron
Shaft Seal:
Nitrile Lip Seal
Port Size:
Ports are 1 Inch Hose Barb

Product Specs :

Faster refuelling - 50 litres/minute .

High head capability - 10 metres .

Self priming up to 3 metres .

Continuously rated.

Vibration tested.

IP55 protected motor.

24V version with thermal cut-out protection.

Full range of installation accessories.

Customised kits for OEM customers.


Parts and Accessories for Jabsco model VR050-1122

Applications

Suitable for mounting to the following equipment Excavators, Cranes, Road rollers, Pavers, Agricultural machines, Generators, Helicopters. Suitable for diesel fuel, Kerosene, Paraffin, Hydraulic oils, Oils up to 150 centi Stokes viscosity.
