Johnson # 10-24239-2 Engine Cooling Pump
Johnson # 10-24239-2

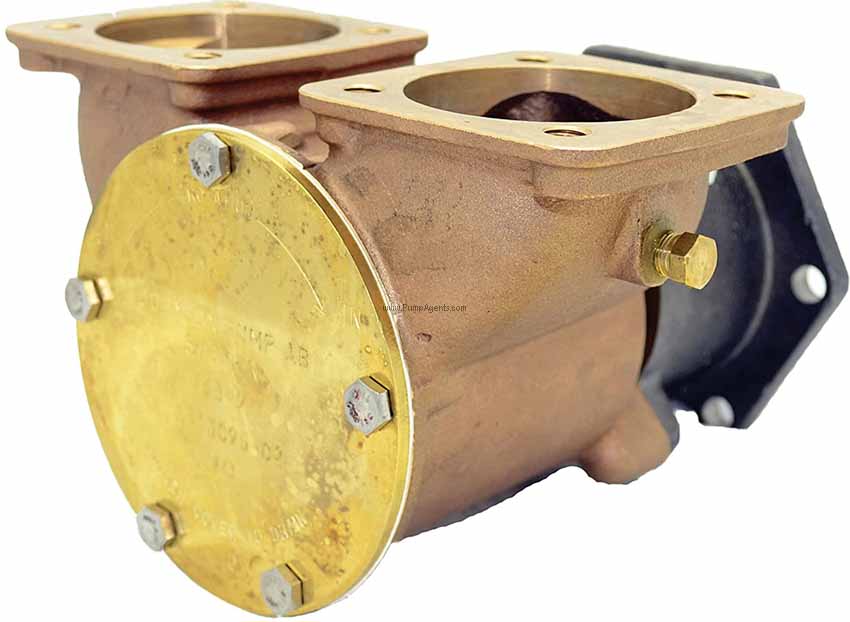

Johnson catalog # 10-24239-2, Engine Cooling Pump end only, F9B-9 series, Flange mount, Bronze construction, Neoprene impeller. Inlet Port is 1-1/4 inch Hose Inlet, Discharge Port is 1-1/4 inch Hose Outlet. Model # F9B-9.
Price : $ 1590.46
Product Information :
Parts Page (click here)
The Johnson 10-24239-2 is a Bronze Engine Cooling Pump end only, F9B-9 series, Flange mount, with Neoprene Impeller, Flanged Ports. This F9B-9 series flexible impeller pump is self-priming and provides an efficient solution to most raw water pumping needs. This pump can pass fairly large solids without clogging or damaging the pumps. This engine cooling pump is designed to the demands of engine manufacturers and are built to take rough treatment. This flange mounted style pump is produced in high volumes, and is customer designed for flange-mounting at a power take off on the engine. The pump is constructed from marine quality bronze and stainless steel for ruggedness and reliability. This Pump has one moving part - a tough, long-lived, wear-resistant flexible impeller lubricated by the liquid being pumped. No metal-to-metal pumping action - no gears to jam, clog or become noisy. It will not air Lock - the pump will continue to operate even when air passes through the system, and it delivers a smooth even pulsation free flow. The Flexible Impeller in this pump generates high rubbing friction unless lubricated by the liquid being pumped. A lack of liquid will cause the impeller to degrade rapidly. On initial start-up pump must be primed to prevent dry-running of the impeller. This pump is self-priming, and will self-prime at low or high speeds. It will pump instantly, and a suction lift of 15 feet is possible when impeller is wet and pump fully primed. Suction lines must be air tight in order for pump to self prime. These pumps are designed to be fully serviceable and after long use can be restored to like new condition, avoiding complete pump replacement. The impeller and cam are easily replaced.
WEIGHT : The Johnson 10-24239-2 weighs 30 Lbs.
Features :
Parts and Accessories for Johnson model 10-24239-2
Major Overhaul Kit / Rebuild Kit :
Catalog # 10-24239-2MJK, Major Service Kit for Johnson 10-24239-2 Contains All Internal Service Parts Except the Shaft
Price: $ 1043.40
Minor Service Kit :
Catalog # 10-24239-2MNK, Minor Service Kit for Johnson 10-24239-2 Contains Impeller, Water Seal and Cover Gasket
Price: $ 295.41
Applications
Typical Applications for the 10242392 pump are for Engine Cooling. This flexible impeller pump is selfpriming and therefore, it is ideal for engine cooling. This pump is designed for and used on the following engines M.A.N. D 2540MLE, D 2840LXE/LE401, D 2848LE/LXE; Nanni D 2840 LE, D 2842 LE, D 2842 LXE, D 2842 LYE, D 2848 LE, D 2866 LE, D 2866 TE. The bronze body and stainless steel shaft are well suited for marine environments. Liquids that are compatible with the neoprene impeller can be pumped including fresh and salt water solutions and mild chemicals. Do not pump gasoline, severe solvents or acids. When possible flush pump with fresh water after each usage. This pump can also be used in other Marine applications such as a bilge pump, deckwash pump, washdown, emptying holding tanks. It can also be used in Industrial applications such as liquid circulation and transfer, emptying tanks and sump drainage, and handling of solids in suspension. This Johnson flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. It operates at low or high speeds can be mounted at any angle and pumps in either direction with equal efficiency. This pump has a rotating impeller that carries the liquid from the inlet to the outlet port. A vacuum is created as the flexible impeller vanes straighten upon leaving the cam, drawing liquid into the pump. When the flexible impeller vanes regain contact with the cam, they bend and the liquid is discharged from the pump in a uniform flow. Liquids can be pumped in the opposite direction by reversing the rotation of the pump. As a consequence of it's design, this flexible impeller pump can pass fairly large solids.
