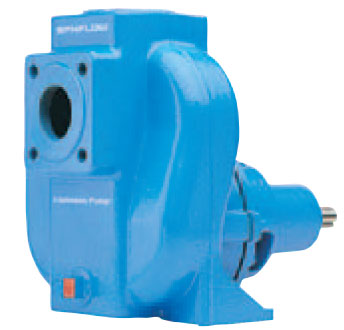

Johnson # FRE80-170 Self-Priming Centrifugal Pump
Johnson # FRE80-170
Johnson catalog # FRE80-170, FreFlow Self-Priming Centrifugal Pump, 80-170, Cast Iron construction, Bronze impeller, Mechanical seal. Inlet Port is 80 mm, Discharge Port is 80 mm.
Price : Contact Us
Product Information :
The Johnson FRE80-170 is a Cast Iron FreFlow Self-Priming Centrifugal Pump, 80-170, with Bronze Impeller, Mechanical Seal, 80 mm Ports, replacement pump end only without a Motor. This FreFlow pump has been designed to meet the needs for handling contaminated liquids as well as liquids containing air or gas. The compact design makes the FreFlow easy to handle, whilst its robust design ensures a life-long durability. It has an Oil bath for the mechanical seal, and the Mechanical seals are to EN 12756 (DIN 24960) specifications. This pump has excellent self-priming ability and has a no non-return valve required in inlet. The FreFlow is frequently used on sumps or gullies where its high level of performance and self-priming ability ensure outstanding reliability in operation. Thanks to its excellent self-priming characteristics, the FreFlow is a typical marine pump for example bilge and ballast pumping as well as for fire fighting. It has outstanding qualities for liquids containing gas or air, and is ideal for handling contaminated liquids. The FreFlow is the sensible alternative to submersible pumps.
WEIGHT : The Johnson FRE80-170 weighs 220.46 Lbs.
Features :
Applications
FreFlow pumps are selfpriming centrifugal pumps suitable for handling contaminated and lowviscosity liquids. Its innovative design, eliminating the need for a nonreturn valve, results in less maintenance. Oil bath lubrication on the atmospheric side of the mechanical seal prevents dry running during the self priming .PERIOD The capability of handling gaseous liquids ensures smooth and continuous operation. Typical industries for the FRE80170 are chemical, petrochemical and pharmaceutical industry, oil, gas and electricity generation, paper, plastic, paint and metal finishing industry and shipbuilding. The combination of its easy maintenance and operation, make the FreFlow a suitable pumping solution for a large number of applications. It's material of construction options are G1 for cast iron pump casing and impeller, G2 for cast iron pump casing, bronze impeller, G6 for cast iron pump casing, stainless steel impeller, B2 for bronze pump casing and impeller, and R6 for stainless steel pump casing and impeller. It's Shaft sealing options are MQO for mechanical seal unbalanced nonEN standard, with oil quench, MQ1 for mechanical seal unbalanced EN 12756, with oil quench, and MD1 for mechanical seal double unbalanced EN 12756.
