MP # 24636 Flomax 10 Pump Pack pump end only

MP Pump 24636

MP # 24636

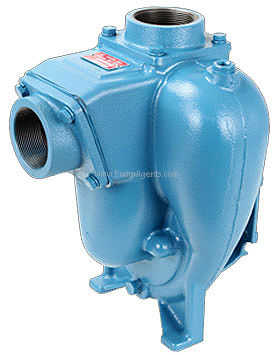

MP catalog # 24636, Flomax 10 series Self Priming Centrifugal Pump Pack pump end only for mounting on a motor, Cast Iron construction, 5.75 inch diameter impeller, Silicon Carbide Mechanical seal. Inlet Port is 2 inch, Discharge Port is 2 inch.

Price : $ 1493.89

Qty :

Same Day (1 in stock)



Product Information :

The MP 24636 is a Cast Iron Flomax 10 series Self Priming Centrifugal Pump Pack pump end only for mounting on a motor, with 5.75 inch Diameter Impeller, Silicon Carbide Mechanical Seal, 2 inch by 2 inch Ports, replacement pump end only without a Motor. The FLOMAX 10 self priming centrifugal pump by MP Pumps can create a vacuum that is sufficient to lift liquids up to 25 feet. Once this pump is primed, a built in flapper valve maintains a full column of liquid in the suction line. These centrifugal pumps can easily couple to hydraulic motors, 182TC/184TC motors, and gas engines. A FLOMAX 10 PumPAK is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 182TC and 184TC frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive. Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller. The FLOMAX series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators and Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.

Features :

Pump Body:
Cast Iron
Impeller:
5.75 inch Diameter
Shaft Seal:
Silicon Carbide Mechanical seal
Port Size:
Inlet Port is 2 inch, Discharge Port is 2 inch.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 24636 are Agricultural, Industrial, Marine, OEM.
