MP # 30754 HTO 120 Pump and Motor unit 3 HP

MP Pump 30754

MP # 30754

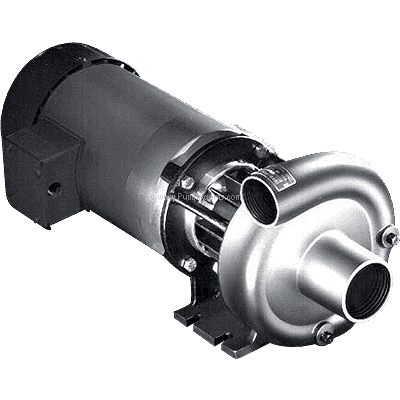

MP catalog # 30754, HTO 120 series Hot Oil Centrifugal Pump and Motor unit, minus base, Ductile Iron construction, Ductile Iron Impeller, 5.25 inch diameter impeller. Motor is 3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled). Inlet Port is 2 inch, Discharge Port is 1-1/2 inch NPT or 125 lb. flat flange.

Price : $ 3168.69

Qty :

Same Day (1 in stock)



Product Information :

The MP 30754 is a Ductile Iron HTO 120 series Hot Oil Centrifugal Pump and Motor unit, minus base, with Ductile Iron Impeller 5.25 inch Diameter Impeller, 2 inch by 1-1/2 inch NPT or 125 lb. flat flange Ports, close coupled to a 3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. The seal is cooled by utilizing ambient air on this model of hot oil pump, ensuring operating temperatures stay as low as possible. On top of that, this end suction centrifugal pump can be mounted vertically or horizontally, while operating efficiently at extreme temperatures. Available Tempuflo hot oil pump models are available with or without an electric motor.

Features :

Pump Body:
Ductile Iron
Impeller:
Ductile Iron Impeller, 5.25 inch Diameter
Port Size:
Inlet Port is 2 inch, Discharge Port is 1-1/2 inch NPT or 125 lb. flat flange.
Motor Specs :
3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Applications

Typical applications for the Gardner Denver MP model 30754 are Industrial, OEM.
