MP # 33359 Flomax 15 Pump Pack pump end only

MP Pump 33359

MP # 33359

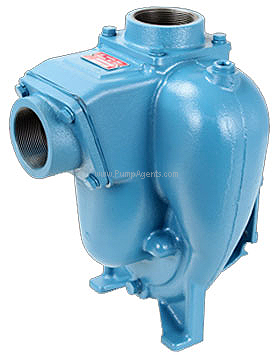

MP catalog # 33359, Flomax 15 series Self Priming Centrifugal Pump Pack pump end only for mounting on a motor, Bronze construction, 5 Blade Stainless Steel Impeller, 5.56 inch diameter impeller, 1.12 inch size Shaft. Inlet Port is 3 inch, Discharge Port is 3 inch NPT.

Price : $ 6248.90

Qty :

2 Weeks (0 in stock)



Product Information :

The MP 33359 is a Bronze Flomax 15 series Self Priming Centrifugal Pump Pack pump end only for mounting on a motor, with 5 Blade Stainless Steel Impeller 5.56 inch Diameter Impeller, 1.12 inch size shaft, 3 inch by 3 inch NPT Ports, replacement pump end only without a Motor. Close coupled to hydraulic motors, 184TC/215TC frame motors, and gas engines, this self priming pump is great for a wide variety of applications. A flapper valve comes standard with every FLOMAX 15 model, making sure a full column of liquid is maintained in the suction line. A bearing pedestal for this self priming centrifugal pump is available for T-frame motors or belt drives. A FLOMAX 15 PumPAK is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 184TC and 215C frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive. Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller. The FLOMAX series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators and Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.

Features :

Pump Body:
Bronze
Impeller:
5 Blade Stainless Steel Impeller, 5.56 inch Diameter
Shaft:
1.12 inch size
Port Size:
Inlet Port is 3 inch, Discharge Port is 3 inch NPT.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 33359 are Agricultural, Industrial, Marine, OEM.
