MP # 34741 CFX 50 Pump and Permanent magnet Motor unit HP

MP Pump 34741

MP # 34741

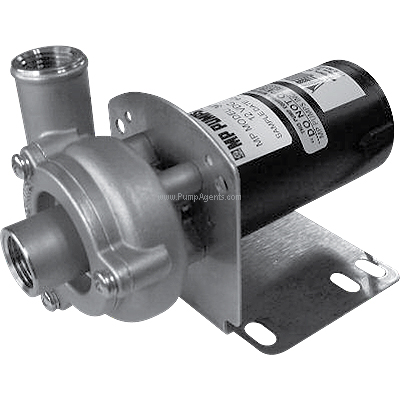

MP catalog # 34741, CFX 50 series End Suction Centrifugal Circulator Pump and Permanent magnet Motor unit, Stainless Steel construction. Motor is Horsepower, 3600 RPM, 12 Volt DC. Inlet Port is 1/2 inch NPT threaded ports, Vertical discharge, Discharge Port is 1/2 inch NPT threaded ports, Vertical discharge.

Price : $ 362.37

Qty :

Same Day (3 in stock)



Product Information :

The MP 34741 is a Stainless Steel CFX 50 series End Suction Centrifugal Circulator Pump and Permanent magnet Motor unit, and 1/2 inch NPT threaded ports, Vertical discharge, coupled to a Horsepower, 3600 RPM, 12 Volt DC Motor. The CFX 50 is a high performance 316 stainless steel circulator end suction centrifugal pump. The high quality steel this chemical pump contains prevents any type of corrosion from happening when pumping hazardous materials. The wide array of applications this end suction chemical pump is geared toward includes the agricultural, commercial, industrial, marine, OEM, and transportation industries. All pumping parts are 316 stainless steel for superior corrosion resistance when pumping chemical compounds. A carbon / ceramic / Viton bellows shaft seal is standard. The CFX 50 series is available in A/C or D/C drives with 1/2 NPT and 1 hose barb port configurations. Marine ignition protected motors available. Pump rotations in 90 degree increments.

Features :

Pump Body:
Stainless Steel
Port Size:
Inlet Port is 1/2 inch NPT threaded ports, Vertical discharge, Discharge Port is 1/2 inch NPT threaded ports, Vertical discharge.
Motor Specs :
Horsepower, 3600 RPM, 12 Volt DC.

Applications

Typical applications for the Gardner Denver MP model 34741 are Agricultural, Commercial, Industrial, Marine, OEM, Transportation.
