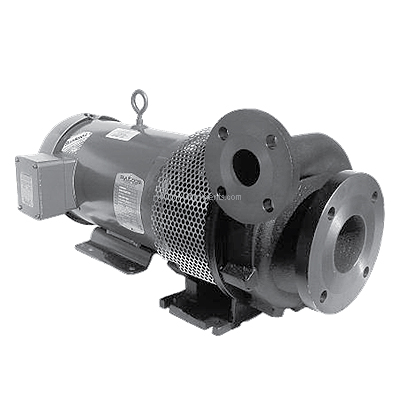

MP # 34808 HTO 180 Pump and Motor unit 7-1/2 HP

MP Pump 34808

MP # 34808

MP catalog # 34808, HTO 180 series Hot Oil Centrifugal Pump and Motor unit, Ductile Iron construction, 5.125 inch diameter impeller. Motor is 7-1/2 Horsepower, 230/460 Volts, Three Phase, ODP (Open Drip Proof). Inlet Port is 3 inch, Discharge Port is 1-1/2 inch ANSI 150 lb. flat flange.

Price : $ 5731.45

Qty :

2 Weeks (0 in stock)



Product Information :

The MP 34808 is a Ductile Iron HTO 180 series Hot Oil Centrifugal Pump and Motor unit, with 5.125 inch Diameter Impeller, 3 inch by 1-1/2 inch ANSI 150 lb. flat flange Ports, close coupled to a 7-1/2 Horsepower, 230/460 Volts, Three Phase, ODP (Open Drip Proof) Motor. This patented centrifugal hot oil pump was engineered to operate in high temperature applications, such as plastics, chemical, food, and processing. Available with or without a motor, the HTO 180 end suction pump was designed to be mounted vertically or horizontally. Cool ambient air temperature greatly increases the seals life, making this one of the most versatile hot oil pumps on the market.

Features :

Pump Body:
Ductile Iron
Impeller:
5.125 inch Diameter
Port Size:
Inlet Port is 3 inch, Discharge Port is 1-1/2 inch ANSI 150 lb. flat flange.
Motor Specs :
7-1/2 Horsepower, 230/460 Volts, Three Phase, ODP (Open Drip Proof).

Applications

Typical applications for the Gardner Denver MP model 34808 are Industrial, OEM.
