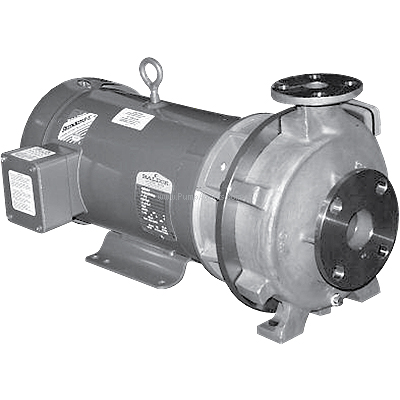

MP # 34892 Chemflo 5 Pump and Motor unit 7-1/2 HP

The MP 34892 is a Stainless Steel Chemflo 5 series Centrifugal Chemical Pump and Motor unit, with 5.3 inch Diameter Impeller, 2 inch by 1-1/2 inch ANSI 150 lb. flange Ports, close coupled to a 7-1/2 Horsepower, 230/460 Volts, Three Phase Motor. A fully enclosed impeller ensures this chemical pump will run smoothly and efficiently. To add to this end suction centrifugal pumps efficiency, high quality stainless steel prevents any chemical corrosion from taking place internally. The CHEMFLO 5 CC features a total head up to 157 feet and flows up to 300 GPM. The ChemFlo 5 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 5 to meet most duty points up to 300 GPM and total head up to 157 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 5 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 145TC, 184TC, and 215TC. If ordering a PumPAK please note that the electric motor must have a base.
