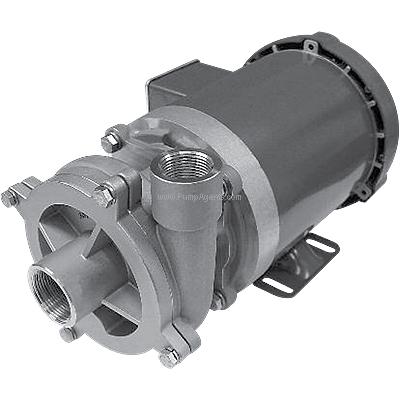

MP # 35161 CFX 125 Pump and Motor unit 3/4 HP
MP # 35161
MP catalog # 35161, CFX 125 series End Suction Centrifugal Circulator Pump and Motor unit, Stainless Steel construction, Cast Stainless Steel Impeller, 4.45 inch diameter impeller, Teflon/Carbon/Ceramic T-9 Mechanical seal Mechanical seal for chemical duty. Motor is 3/4 Horsepower, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled). Inlet Port is 1-1/4 inch NPT, Discharge Port is 1 inch NPT.
Price : $ 2028.72
Product Information :
The MP 35161 is a Stainless Steel CFX 125 series End Suction Centrifugal Circulator Pump and Motor unit, with Cast Stainless Steel Impeller 4.45 inch Diameter Impeller, Teflon/Carbon/Ceramic T/9 for chemical duty Mechanical Seal, 1-1/4 inch NPT by 1 inch NPT Ports, close coupled to a 3/4 Horsepower, 115/230 Volts, single phase, TEFC (Totally Enclosed Fan Cooled) Motor. This end suction centrifugal pump is a perfect fit for all agricultural, marine, commercial, and industrial applications. Every CFX 125 chemical pump includes a carbon / ceramic / Viton bellows shaft seal. With that, tough, anti-corrosive 316 stainless steel parts on this centrifugal pump prevent the harmful chemicals from running their course on the metal. All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. A carbon / ceramic / Viton bellows shaft seal is standard with optional seals available on request. The CFX 125 model is available with 1-1/4 inch x 1inch NPT port configurations. Pump rotation in 90 degree increments.
Features :
Applications
Typical applications for the Gardner Denver MP model 35161 are Agricultural, Commercial, Industrial, Marine.
