MP # 35367 Chemflo 2 Pump and Motor unit 1-1/2 HP

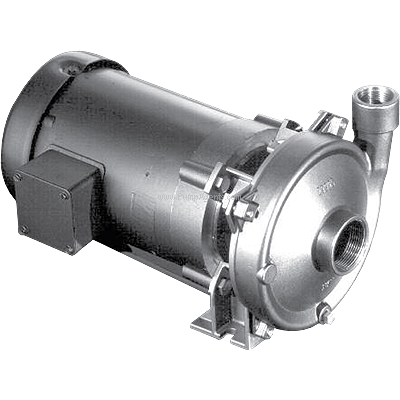

The MP 35367 is a Stainless Steel Chemflo 2 series Centrifugal Chemical Pump and Motor unit, with 3.5 inch Diameter Impeller, 1-1/2 inch by 1 inch NPT Ports, close coupled to a 1-1/2 Horsepower, 115/230 Volts, single phase, XP Motor. The CHEMFLO2 CC was designed to pump harsh chemical compounds. Internal components made out of 316 stainless steel make chemical pumping possible for this end suction centrifugal pump. To allow larger solids to pass through, a semi-open designed impeller is included standard. Made with high quality investment cast 316 stainless steel components, the ChemFlo series of pumps are designed to be applied in a wide range of pumping applications where stainless steel is required. ChemFlo 2 pumps utilize a semi-open impeller design to allow for passage of larger solid sizes. Several seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 2 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 56C and 145TC. If ordering a PumPAK for a 145TC motor please note that the electric motor must have a base. Other drive options are available. Further expanding the versatility of the ChemFlo series is the CFB 2 pump, a ChemFlo 2 in NiBrAl material. All wetted parts are produced in CA 958 nickel aluminum bronze including the drive sleeve to maximize corrosion protection in seawater applications.
