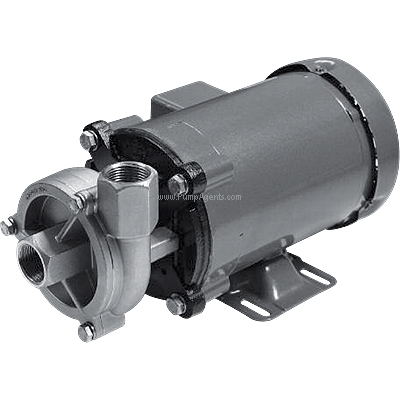

MP # 35688 CFX 100 Pump and Motor unit 1/2 HP

The MP 35688 is a Stainless Steel CFX 100 series End Suction Centrifugal Circulator End Suction Centrifugal Circulator Pump and Motor unit, with 3.75 inch Diameter Impeller, Carbon/Silicon Carbide Mechanical Seal, 1 inch NPT by 1 inch NPT Ports, close coupled to a 1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. The CFX 100 316 stainless steel end suction centrifugal pump is ideal for hard-to-handle applications in the marine, commercial, and industrial markets. The special steel on this chemical pump severely restricts the amount of corrosion that certain chemicals can inflict on the system. Each CFX 100 chemical pump comes with a carbon / ceramic / Viton bellows shaft seal to maximize efficiency. All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. A carbon / ceramic / Viton bellows shaft seal is standard with optional seals available on request. The CFX 100 model is available with 1 inch NPT port configurations. Pump rotation in 90 degree increments.
