MP # 35838 HTO 180 Pump and Motor unit 7-1/2 HP
MP # 35838

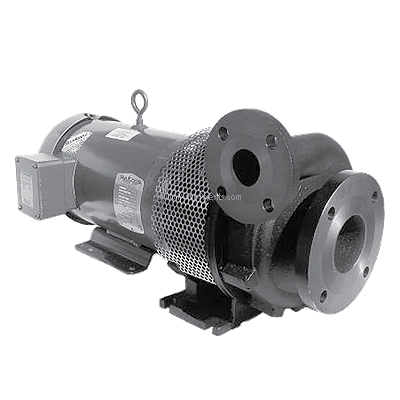

MP catalog # 35838, HTO 180 series Hot Oil Centrifugal Pump and Motor unit, Ductile Iron construction, Ductile Iron Impeller, 6.50 inch diameter impeller. Motor is 7-1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled). Inlet Port is 3 inch, Discharge Port is 1-1/2 inch ANSI 150 lb. flat flange.
Price : $ 5127.10
Product Information :
The MP 35838 is a Ductile Iron HTO 180 series Hot Oil Centrifugal Pump and Motor unit, with Ductile Iron Impeller 6.50 inch Diameter Impeller, 3 inch by 1-1/2 inch ANSI 150 lb. flat flange Ports, close coupled to a 7-1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. This patented centrifugal hot oil pump was engineered to operate in high temperature applications, such as plastics, chemical, food, and processing. Available with or without a motor, the HTO 180 end suction pump was designed to be mounted vertically or horizontally. Cool ambient air temperature greatly increases the seals life, making this one of the most versatile hot oil pumps on the market.
Features :
Applications
Typical applications for the Gardner Denver MP model 35838 are Industrial, OEM.
