MP # 36444 CFX 75 Pump and Motor unit 1/6 HP

MP Pump 36444

MP # 36444

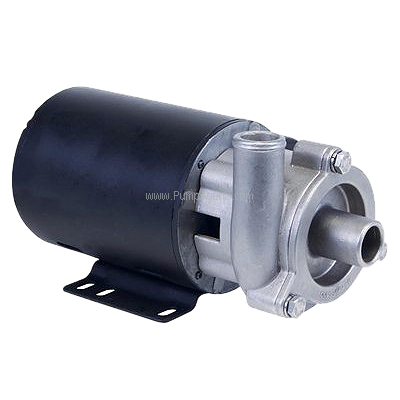

MP catalog # 36444, CFX 75 series End Suction Centrifugal Circulator Pump and Motor unit, Stainless Steel construction, Carbon/Silicon Carbide Mechanical seal. Motor is 1/6 Horsepower, 115/230 Volts, Single Phase, XP. Inlet Port is 3/4 inch NPT, Discharge Port is 3/4 inch NPT.

Price : $ 1908.64

Qty :

Same Day (1 in stock)



Product Information :

The MP 36444 is a Stainless Steel CFX 75 series End Suction Centrifugal Circulator Pump and Motor unit, with Carbon/Silicon Carbide Mechanical Seal, 3/4 inch NPT by 3/4 inch NPT Ports, close coupled to a 1/6 Horsepower, 115/230 Volts, single phase, XP Motor. Engineered to resist corrosion generated from harmful chemicals, the internal components of the CFX 75 H chemical pump are made of 316 stainless steel. This end suction centrifugal pump was designed with an easy hose connection to work in marine, agricultural, commercial, and industrial applications. The CFX75 H model features all 316 stainless steel components for superior corrosion resistance when pumping chemical compounds. A carbon/ceramic/Viton bellows shaft seal is standard. Ports are 3/4 inch NPT connections. Marine ignition protected motors available. Pump can be rotated in 90 degree increments.

Features :

Pump Body:
Stainless Steel
Shaft Seal:
Carbon/Silicon Carbide Mechanical seal
Port Size:
Inlet Port is 3/4 inch NPT, Discharge Port is 3/4 inch NPT.
Motor Specs :
1/6 Horsepower, 115/230 Volts, Single Phase, XP.

Applications

Typical applications for the Gardner Denver MP model 36444 are Agricultural, Commercial, Industrial, Marine, OEM, Transportation.
