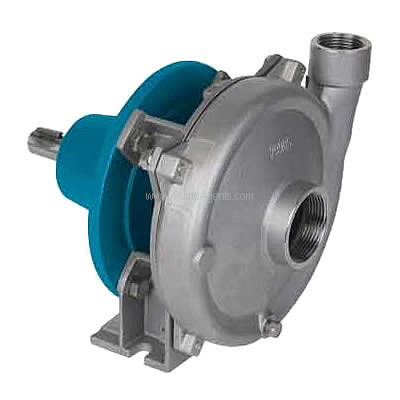

MP # 36501 Chemflo 3 Pedestal pump end only

The MP 36501 is a Stainless Steel Chemflo 3 series Pedestal Centrifugal Chemical Pump end only, bare shafted, with 4.88 inch Diameter Impeller, T/2 double convolution Mechanical Seal, 2 inch by 1-1/2 inch NPT Ports, replacement pump end only without a Motor. MP Pumps has re-designed the CHEMFLO 3 Pedestal chemical pump housing allowing for the acceptance of both a semi-open and enclosed impeller. The enclosed impeller improves pump efficiency over the semi-open impeller making it an ideal option when pumping fluids without large solids. Maximum solids should not exceed.25 diameter for this end suction centrifugal pump. All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. The Chemflo 3 is adaptable for close coupling to both 56C 145TC and 184C NEMA frame electric motors. Pedestal (Bare Shaft) mounting is available for long-coupling. The Chemflo 3 is also available with the MP Hy-Speed hydraulic motor. If ordering a pumpak with a 145TC please note that the electric motor must have a base.
