MP # 36774 CFX 75 Pedestal pump end only

MP Pump 36774

MP # 36774

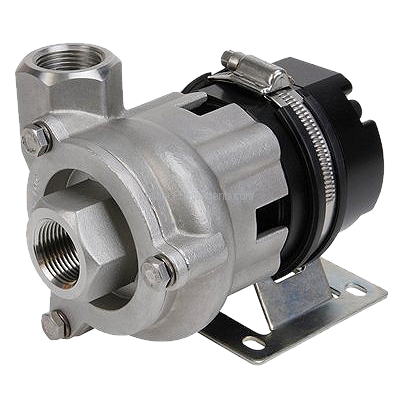

MP catalog # 36774, CFX 75 series Pedestal End Suction Centrifugal Circulator Pump end only, bare shafted, with Base, Stainless Steel construction. Inlet Port is 3/4 inch NPT, Discharge Port is 3/4 inch NPT.

Price : $ 1321.67

Qty :

Same Day (1 in stock)



Product Information :

The MP 36774 is a Stainless Steel CFX 75 series Pedestal End Suction Centrifugal Circulator Pump end only, bare shafted, with Base, and 3/4 inch NPT by 3/4 inch NPT Ports, replacement pump end only without a Motor. Engineered to resist corrosion generated from harmful chemicals, the internal components of the CFX 75 H chemical pump are made of 316 stainless steel. This end suction centrifugal pump was designed with an easy hose connection to work in marine, agricultural, commercial, and industrial applications. The CFX75 H model features all 316 stainless steel components for superior corrosion resistance when pumping chemical compounds. A carbon/ceramic/Viton bellows shaft seal is standard. Ports are 3/4 inch NPT connections. Marine ignition protected motors available. Pump can be rotated in 90 degree increments.

Features :

Pump Body:
Stainless Steel
Port Size:
Inlet Port is 3/4 inch NPT, Discharge Port is 3/4 inch NPT.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 36774 are Agricultural, Commercial, Industrial, Marine, OEM, Transportation.
