MP # 38034 Chemflo 9 Pump and Motor unit 20 HP

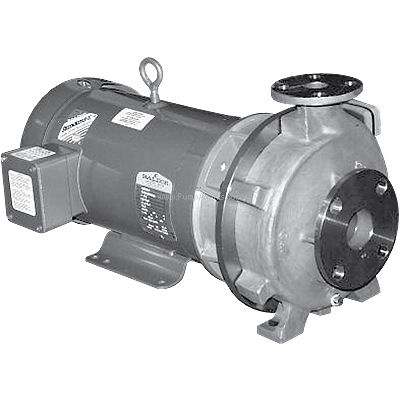

The MP 38034 is a Stainless Steel Chemflo 9 series Centrifugal Chemical Pump and Motor unit, with 8.0 inch Diameter Impeller, T/21, a single convolution Mechanical Seal, 2 inch by 1 inch 150 lb. ANSI flange Ports, close coupled to a 20 Horsepower, 230/460 Volts, Three Phase Motor. The CHEMFLO 9 end suction centrifugal pump was engineered to be highly efficient. Featuring a total head up to 460 feet and a flow reaching up to 270 GPM, this chemical pump can run all of your hazardous materials without corroding. Multiple seal options are available on top of the standard 2100 carbon / ceramic / Viton mechanical seal. The ChemFlo 9 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 9 to meet most duty points up to 270 GPM and total head up to 460 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 9 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 184TC, 215TC, 256TC, 286TSC, and 324TS. If ordering a PumPAK please note that the electric motor must have a base.
