MP 38290 HTO 300 Pump and Motor unit

MP # 38290 HTO 300 Pump and Motor unit 10 HP

MP # 38290

MP catalog # 38290, HTO 300 series Hot Oil Centrifugal Pump and Motor unit, Ductile Iron construction, 5.5 inch diameter impeller. Motor is 10 Horsepower, 230/460 Volts, Three Phase, XP. Inlet Port is 3 inch, Discharge Port is 2-1/2 inch ANSI 150 lb. flat flange.

Price : $ 7629.82

Product Information :

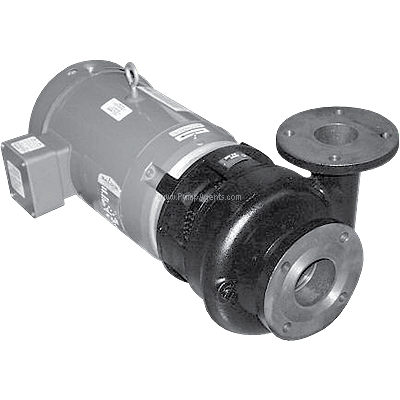

The MP 38290 is a Ductile Iron HTO 300 series Hot Oil Centrifugal Pump and Motor unit, with 5.5 inch Diameter Impeller, 3 inch by 2-1/2 inch ANSI 150 lb. flat flange Ports, close coupled to a 10 Horsepower, 230/460 Volts, Three Phase, XP Motor. Versatile enough to be mounted vertically or horizontally, this end suction centrifugal pump was created to operate at high temperatures up to 650 F (343 C). Applications for this hot oil pump include the food, processing, chemical, and plastic industries. Internal technology utilizes ambient air as its cooling source to reduce the operating temperature of the HTO 300. An electric motor for this hot oil pump is optional.

Features :

Pump Body:

Ductile Iron

Impeller:

5.5 inch Diameter

Port Size:

Inlet Port is 3 inch, Discharge Port is 2-1/2 inch ANSI 150 lb. flat flange.

Motor Specs :

10 Horsepower, 230/460 Volts, Three Phase, XP.
