MP # 38399 CFX 75 P Pump and Motor unit 1/6 HP

MP Pump 38399

MP # 38399

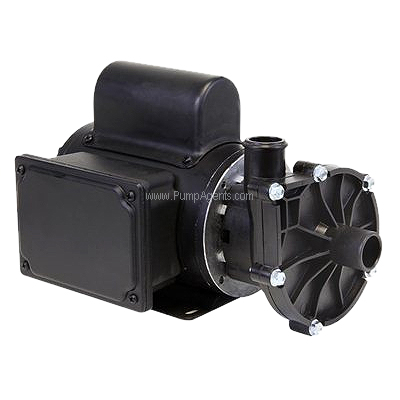

MP catalog # 38399, CFX 75 P series End Suction Centrifugal Circulator Pump and Motor unit, Plastic construction. Motor is 1/6 Horsepower, 115/230 Volts, Single Phase, TENV (Totally Enclosed Non Ventilated). Inlet Port is 3/4 inch NPT, Discharge Port is 3/4 inch NPT.

Price : $ 337.33

Qty :

Same Day (1 in stock)



Product Information :

The MP 38399 is a Plastic CFX 75 P series End Suction Centrifugal Circulator Pump and Motor unit, and 3/4 inch NPT by 3/4 inch NPT Ports, close coupled to a 1/6 Horsepower, 115/230 Volts, single phase, TENV (Totally Enclosed Non Ventilated) Motor. The CFX 75 P chemical pump is a high performance polyphenylene sulfide pump. This end suction centrifugal pump has components built from state of the art anti-corrosion materials, known as 316 stainless steel. This versatile chemical pump can be put to use in a number of different industries. The CFX 75 P model features a polyphenylene sulfide pump with a 316 stainless steel impeller for superior corrosion resistance. A carbon/ceramic/Viton bellows shaft seal is standard. Ports are 1 inch hose connections. Marine ignition protected motors available. Pump can be rotated in 90 degrees increments.

Features :

Pump Body:
Plastic
Port Size:
Inlet Port is 3/4 inch NPT, Discharge Port is 3/4 inch NPT.
Motor Specs :
1/6 Horsepower, 115/230 Volts, Single Phase, TENV (Totally Enclosed Non Ventilated).

Applications

Typical applications for the Gardner Denver MP model 38399 are Agricultural, Commercial, Industrial, Marine.
