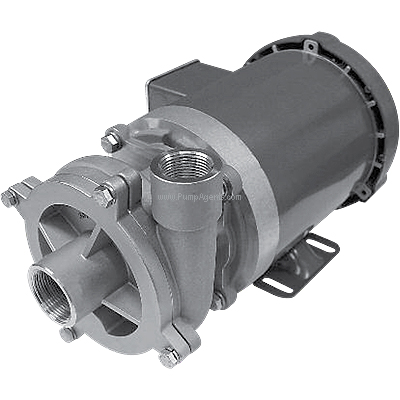

MP # 39646 CFX 125 Pump and Motor unit 1-1/2 HP

MP Pump 39646

MP # 39646

MP catalog # 39646, CFX 125 series End Suction Centrifugal Circulator Pump and Motor unit, Stainless Steel construction, 4.76 inch diameter impeller, T-21 Mechanical seal with a single convolution. Motor is 1-1/2 Horsepower, 115/230 Volts, Single Phase. Inlet Port is 1-1/4 inch NPT, Discharge Port is 1 inch NPT.

Price : $ 1501.79

Qty :

Same Day (1 in stock)



Product Information :

The MP 39646 is a Stainless Steel CFX 125 series End Suction Centrifugal Circulator Pump and Motor unit, with 4.76 inch Diameter Impeller, T/21, a single convolution Mechanical Seal, 1-1/4 inch NPT by 1 inch NPT Ports, close coupled to a 1-1/2 Horsepower, 115/230 Volts, single phase Motor. This end suction centrifugal pump is a perfect fit for all agricultural, marine, commercial, and industrial applications. Every CFX 125 chemical pump includes a carbon / ceramic / Viton bellows shaft seal. With that, tough, anti-corrosive 316 stainless steel parts on this centrifugal pump prevent the harmful chemicals from running their course on the metal. All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. A carbon / ceramic / Viton bellows shaft seal is standard with optional seals available on request. The CFX 125 model is available with 1-1/4 inch x 1inch NPT port configurations. Pump rotation in 90 degree increments.

Features :

Pump Body:
Stainless Steel
Impeller:
4.76 inch Diameter
Shaft Seal:
T-21 Mechanical seal with a single convolution
Port Size:
Inlet Port is 1-1/4 inch NPT, Discharge Port is 1 inch NPT.
Motor Specs :
1-1/2 Horsepower, 115/230 Volts, Single Phase.

Applications

Typical applications for the Gardner Denver MP model 39646 are Agricultural, Commercial, Industrial, Marine.
