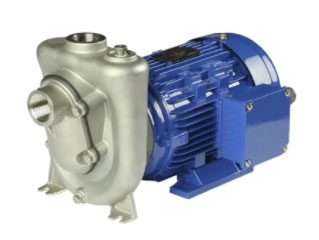

MP # 39788 FMX 100 Pump and Motor unit 1 HP

The MP 39788 is a Stainless Steel FMX 100 series Self Priming Centrifugal Pump and Motor unit, with 3.95 inch Diameter Impeller, 1 inch NPT by 1 inch NPT Ports, close coupled to a 1 Horsepower, 230/460 Volts, Three Phase Motor. The patented 1" x 1" FMX100 self priming centrifugal pump is constructed from 316 SS for superior corrosion resistance and compatibility with most fluid types. A type 6A carbon/ceramic/Viton mechanical seal is standard. With a maximum flow of over 55 GPM and pressure capabilities of nearly 60 feet, this rugged industrial pump is capable of 17 feet suction lift when operating at 3450 RPM. The FMX 100 has numerous applications in industries such as: construction, petroleum, diesel exhaust fluid, marine and marine air conditioning, agriculture for biocides and liquid fertilizers, and numerous industrial applications such as brine and calcium chloride.
