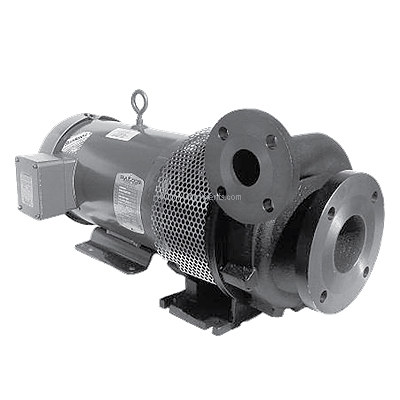

MP # 50195 HTO 180 Pump and Motor unit 7-1/2 HP

The MP 50195 is a Ductile Iron HTO 180 series Hot Oil Centrifugal Pump and Motor unit, with 5.5 inch Diameter Impeller, 3 inch by 1-1/2 inch ANSI 150 lb. flat flange Ports, close coupled to a 7-1/2 Horsepower, 230/460 Volts, Three Phase Motor. This patented centrifugal hot oil pump was engineered to operate in high temperature applications, such as plastics, chemical, food, and processing. Available with or without a motor, the HTO 180 end suction pump was designed to be mounted vertically or horizontally. Cool ambient air temperature greatly increases the seals life, making this one of the most versatile hot oil pumps on the market.
