MP # 50509 Chemflo 3 Pump and Motor unit 3 HP

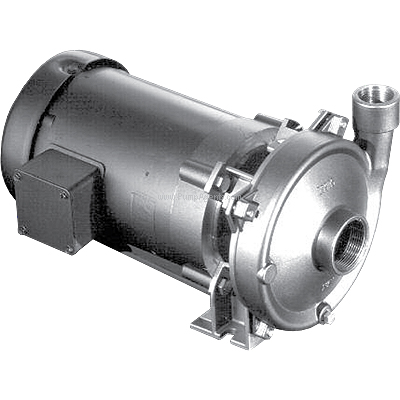

The MP 50509 is a Stainless Steel Chemflo 3 series Centrifugal Chemical Pump and Motor unit, minus base, with 4.2 inch Diameter Impeller, T/21, a single convolution Mechanical Seal, 2 inch by 1-1/2 inch NPT Ports, close coupled to a 3 Horsepower, 230/460 Volts, Three Phase Motor. Both electric and hydraulic motors can be close coupled to the CHEMFLO 3 CC end suction centrifugal pump. Investment cast 316 stainless steel components help maintain the efficiency levels of the pump, reducing the harsh effects of certain chemical compounds. A CA 958 nickel aluminum bronze drive sleeve also protects against corrosion on this chemical pump. The ChemFlo 3 pumps utilize a semi-open impeller design to allow for passage of larger solid sizes than similar sized enclosed impellers. Several seal options are available in additon to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 3 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Electric and hydraulic motors can be close coupled to ChemFlo 3 pumps or pedestal mounted versions are also available for long coupling. Further expanding the versatility of the ChemFlo series is the CFB 3 pump, a ChemFlo 3 in NiBrAl material. All wetted parts are produced in CA 958 nickel aluminum bronze including the drive sleeve to maximize corrosion protection in seawater applications. If ordering a pumpak with a 145TC please note that the electric motor must have a base.
