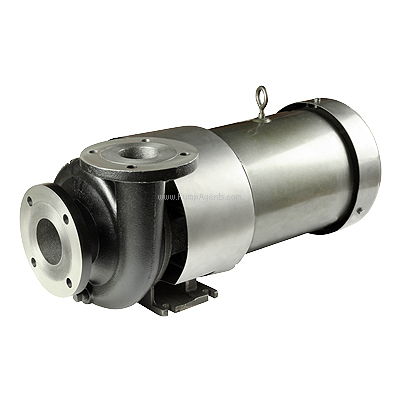

MP # 50542 HTW 300 Pump and Motor unit 20 HP

The MP 50542 is a Ductile Iron HTW 300 series Centrifugal Hot Water Pump and Motor unit, with 7.0 inch Diameter Impeller, 3 inch by 2-1/2 inch ANSI 150 lb. flat flange Ports, close coupled to a 20 Horsepower, 230/460 Volts, Three Phase Motor. This end suction hot water pump can run smoothly when dealing with substances like propylene, triethylene, and ethylene glycols at temperatures as high as 400F (204 C). By utilizing a cooling loop and a fan clamp, our isolated seal chamber is guaranteed to run at a cool, efficient temperature. The HTW 300 centrifugal pump was developed for the industrial and OEM industries. The isolator technology combined with the heat exchanger allows the seal cavity to reach a maximum and seal chamber temperature of 170 F (77 C) while the process temperature is at 400 F (204 C). This lower seal temperature greatly increases seal life, which means less down time for the end user. Discharge port location can be provided as either Horizontal or Vertical position.
