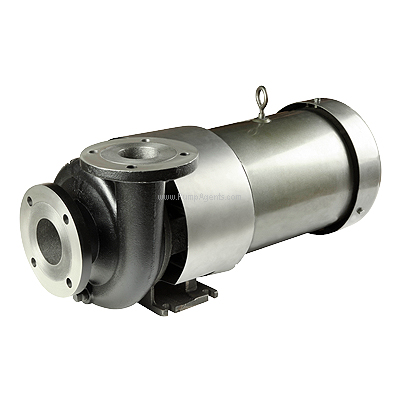

MP # 50571 HTW 180 Pump and Motor unit 10 HP

The MP 50571 is a Ductile Iron HTW 180 series Centrifugal Hot Water Pump and Motor unit, with 5.8 inch Diameter Impeller, Carbon/Silicon Carbide Mechanical Seal, 3 inch by 1-1/2 inch ANSI 150 lb. flat flange Ports, close coupled to a 10 Horsepower, 230/460 Volts, Three Phase Motor. The HTW 180 hot water pump was engineered for maximum efficiency in the OEM and industrial applications. The isolated seal chamber is kept at a cool operating temperature with the help of a fan clamp and cooling loop. With that being stated, this centrifugal end suction pump can withstand high temperatures of substances like triethylene, ethylene, and propylene glycols. The isolator technology combined with the heat exchanger allows the seal cavity to reach a maximum and seal chamber temperature of 170 F (77 C) while the process temperature is at 400 F (204 C). This lower seal temperature greatly increases seal life, which means less down time for the end user. Discharge port location can be provided as either Horizontal or Vertical position.
