MP # 50868 Flomax 15 Pump Pack pump end only

MP Pump 50868

MP # 50868

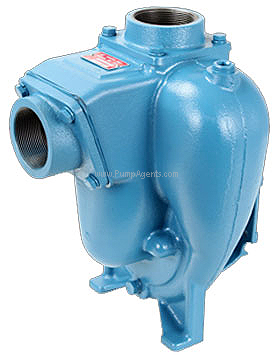

MP catalog # 50868, Flomax 15 series Self Priming Centrifugal Pump Pack pump end only for mounting on a motor, Cast Iron construction, Stainless Steel Impeller, 5.5 inch diameter impeller, T-31 Double seal mechanical seal. Inlet Port is 3 inch, Discharge Port is 3 inch NPT.

Price : $ 3013.06

Qty :

Same Day (1 in stock)



Product Information :

The MP 50868 is a Cast Iron Flomax 15 series Self Priming Centrifugal Pump Pack pump end only for mounting on a motor, with Stainless Steel Impeller 5.5 inch Diameter Impeller, T/31 Double seal Mechanical Seal, 3 inch by 3 inch NPT Ports, replacement pump end only without a Motor. Close coupled to hydraulic motors, 184TC/215TC frame motors, and gas engines, this self priming pump is great for a wide variety of applications. A flapper valve comes standard with every FLOMAX 15 model, making sure a full column of liquid is maintained in the suction line. A bearing pedestal for this self priming centrifugal pump is available for T-frame motors or belt drives. A FLOMAX 15 PumPAK is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 184TC and 215C frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive. Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller. The FLOMAX series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators and Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.

Features :

Pump Body:
Cast Iron
Impeller:
Stainless Steel Impeller, 5.5 inch Diameter
Shaft Seal:
T-31 Double seal mechanical seal
Port Size:
Inlet Port is 3 inch, Discharge Port is 3 inch NPT.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 50868 are Agricultural, Industrial, Marine, OEM.
