MP # 50932 Pump and Motor unit 7-1/2 HP

MP Pump 50932

MP # 50932

MP catalog # 50932, Pump and Motor unit, Cast Iron construction, Bronze impeller. Motor is 7-1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled). Inlet Port is Horizontal discharge, Discharge Port is Horizontal discharge.

Price : $ 2796.60

Qty :

2 Weeks (0 in stock)



Product Information :

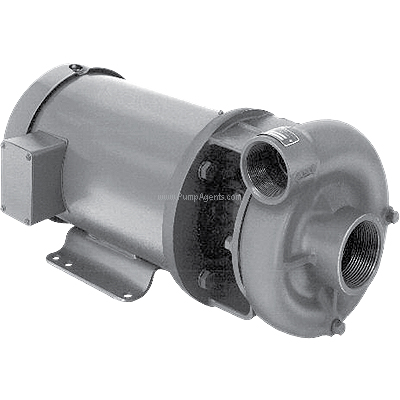

The MP 50932 is a Cast Iron Pump and Motor unit, with Bronze Impeller, Horizontal discharge Ports, close coupled to a 7-1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Series 120 end suction centrifugal pumps are close coupled to standard NEMA "C" face motors. This industrial liquid pump is available in cast iron, bronze, or aluminum. All fasteners are stainless steel to prolong the life of the pump by reducing corrosion. Agricultural, commercial, industrial, and OEM industries are where these end suction centrifugal pumps can be applied. All fasteners are stainless steel to reduce corrosion. Impellers are dynamically balanced to improve efficiency and bearing life. Standard carbon / ceramic / Viton mechanical seal is self-adjusting and corrosion resistant to handle almost any liquid. Completely tested "Wet End" PumPAKs are available without motors. The MP PumPAK can be mounted to standard NEMA C frame motors in just minutes.

Features :

Pump Body:
Cast Iron
Impeller:
Bronze
Port Size:
Inlet Port is Horizontal discharge, Discharge Port is Horizontal discharge.
Motor Specs :
7-1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Applications

Typical applications for the Gardner Denver MP model 50932 are Agricultural, Commercial, Industrial, OEM.
