MP # 50941 Chemflo 7 Pedestal pump end only

MP Pump 50941

MP # 50941

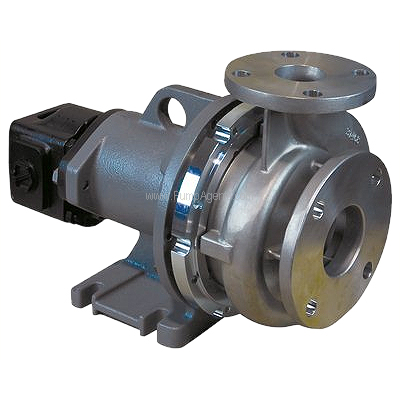

MP catalog # 50941, Chemflo 7 series Pedestal Centrifugal Chemical Pump end only, bare shafted, Stainless Steel construction, 7.5 inch diameter impeller, Silicon Carbide Mechanical seal. Inlet Port is 2 inch, Discharge Port is 1 inch 150 lb. ANSI flange.

Price : $ 3832.29

Qty :

Same Day (1 in stock)



Product Information :

The MP 50941 is a Stainless Steel Chemflo 7 series Pedestal Centrifugal Chemical Pump end only, bare shafted, with 7.5 inch Diameter Impeller, Silicon Carbide Mechanical Seal, 2 inch by 1 inch 150 lb. ANSI flange Ports, replacement pump end only without a Motor. This chemical pump can meet most duty points up to a total head of 280 feet and a flow of 200 GPM. Investment cast 316 stainless steel keeps this pump running clean and efficient, countering the harmful effects of hazardous chemical compounds. The CHEMFLO 7 Pedestal end suction centrifugal pump was developed to suit a wide variety of applications across multiple industries. The ChemFlo 7 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 7 to meet most duty points up to 200 GPM and total head up to 280 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. The Chemflo 7 pedestal uses a pump end (PumPAK) design that is interchangeable with 145TC, 184TC, 215TC, or 256TC electric motors. If ordering a PumPAK with a 145TC please note that the electric motor must have a base.

Features :

Pump Body:
Stainless Steel
Impeller:
7.5 inch Diameter
Shaft Seal:
Silicon Carbide Mechanical seal
Port Size:
Inlet Port is 2 inch, Discharge Port is 1 inch 150 lb. ANSI flange.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 50941 are Agricultural, Commercial, Industrial, Marine, OEM.
