March # 0157-0143-0100 Mag-Drive Centrifugal Pump and Motor 3 HP
March # 0157-0143-0100

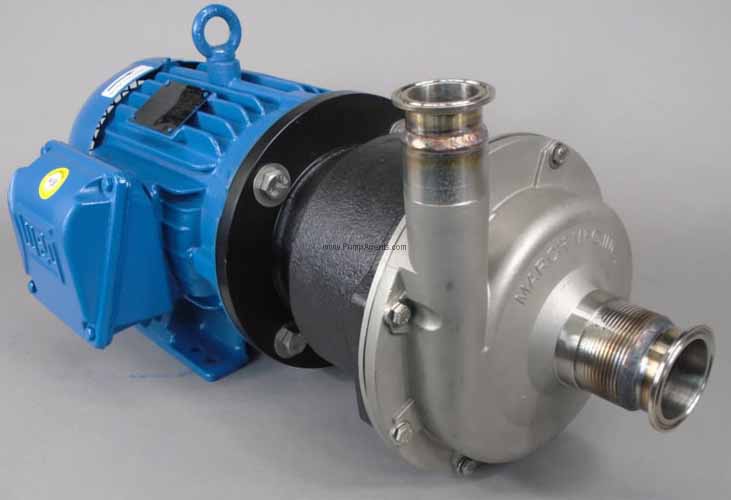

March catalog # 0157-0143-0100, Centrifugal Magnetic Drive Pump and Motor unit, with 316 Stainless Steel front and rear housing, Glass Filled Kynar impeller Viton o-ring, Ceramic shaft and thrust washers Carbon bushing. Motor is 3 Horsepower, 230/460 Volts AC, Three Phase, TEFC (Totally Enclosed Fan Cooled), with metal motor bracket. Inlet Port is 2 inch Sanitary Flange Inlet, Discharge Port is 1-1/2 inch Sanitary Flange Outlet. Rated up to 120 GPM. Model # TE-8SSB-MD 3PH 3HP.
Price : Contact Us
Product Information :
The March 0157-0143-0100 is a Centrifugal Magnetic Drive Pump and Motor unit, with 316 Stainless Steel front and rear housing, Glass Filled Kynar impeller Viton o-ring, Ceramic shaft and thrust washers Carbon bushing, 2 inch Sanitary Flange Inlet by 1-1/2 inch Sanitary Flange Outlet Ports, and is coupled to a 3 Horsepower, 230/460 Volts AC, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. This pump is a centrifugal magnetic drive pump, which eliminates the need for a shaft seal. This seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 20 feet, and its maximum head is 90 Feet (39PSI), with the 3450RPM motor. The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Kynar, Viton, Carbon, and Ceramic. The inlet connection is 2 inch sanitary fitting, and the outlet is 1-1/2 inch sanitary fitting. The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 225 Fahrenheit or 107 Celsius. The March TE-8SSB-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. This pump is not self-priming, and lacks a suction lift, and requires a flooded suction - the liquid must flow naturally to the pump. It cannot be run dry because the impeller requires the liquid being pumped for lubrication. Do not operate the pump until liquid is inside of the pump and ever run the pump dry. Rated performance capacity is up to 120 GPM open flow, and up to 90 feet total dynamic head. At the maximum head of 90 feet, the flow will be lower than the rated capacity of 120 GPM. The maximum temperature for this pump is 225 degrees F.
Features :
Applications
There are many applications that the March 015701430100 are used in. The TE8SSBMD Beer Pump has pumped Hot Water and Hot Wort. Liquids containing ferrous metal fines should not be pumped. This pump may have to be modified to pump liquids or chemicals with specific gravities, viscosities, or elevated temperatures different then ambient water. A magnetic drive pump is sealless, preventing any leakage that is normally associated with a conventional seal pump. Not only does the absence of a seal prevent the leakage of potentially dangerous and expensive liquids, it reduces maintenance time spent on the pump. In any magnetic drive pump, there are only two moving parts, the drive magnet and the impeller. With only two moving parts, there is little to break in the pump, and this pump is serviceable with a screwdriver. The simpler the pump, the less chance there is for failure. A magnetic drive pump is your answer to for a long lasting, dependable, reliable pump. Install the pump as near to the suction source and as low as possible with a flooded suction. The Pump should be mounted horizontally on a foundation secured by anchor bolts on a flat, stable surface or supports which are suitable to prevent movement of the pump and motor when in operation. It is advisable to mount the motor on a dampening/insulation surface to reduce noise and vibration caused by the moving components while operation. Always ensure that the outlet port is higher than the inlet port. This allows a path for the air to escape through. If the outlet is not higher than air can build up and may cause problems within the system. The pump should never be mounted vertically with the pump head at the lowest point. This will create an air pocket within the pump chamber and may cause problems.
Install the pump as near to the suction source and as low as possible with a flooded suction. The Pump should be mounted horizontally on a foundation secured by anchor bolts on a flat, stable surface or supports which are suitable to prevent movement of the pump and motor when in operation. It is advisable to mount the motor on a dampening/insulation surface to reduce noise and vibration caused by the moving components while operation. Always ensure that the outlet port is higher than the inlet port. This allows a path for the air to escape through. If the outlet is not higher than air can build up and may cause problems within the system. The pump should never be mounted vertically with the pump head at the lowest point. This will create an air pocket within the pump chamber and may cause problems.
