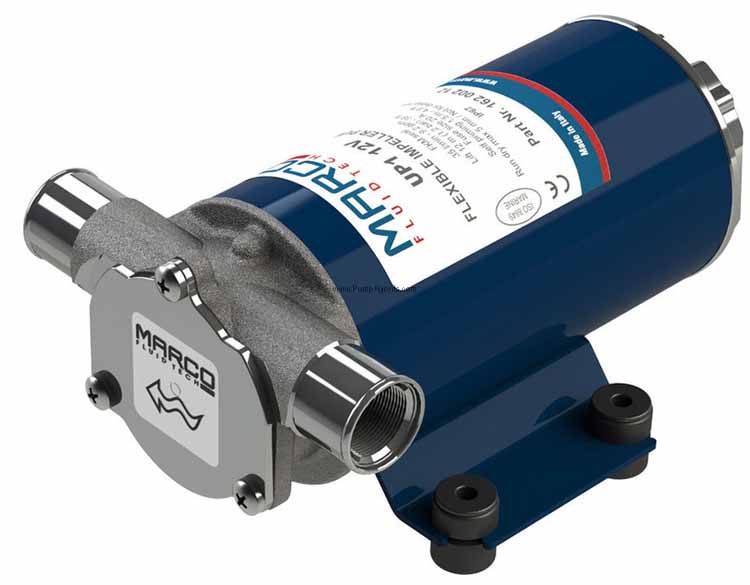

Marco # 162-002-13 Rubber Impeller Pump 35 L/Min
Marco # 162-002-13
Marco catalog # 162-002-13, Pump Flexible Impeller, rated for 9.25 GPM (35 l/min), nickel-plated brass construction, Buna-N impeller, stainless steel Shaft. Motor is 24 Volts DC. Motor has IP 67 Protection. Inlet Port is 1/2 inch BSP, Discharge Port is 1/2 inch BSP. Catalog # UP1(24V).
Price : $ 328.06
Product Information :
The Marco 162-002-13 is a nickel-plated brass Pump Flexible Impeller, rated for 9.25 GPM (35 l/min), with Buna-N Impeller, 1/2 inch BSP Ports, coupled to a 24 Volts DC Motor. This self-priming electric flexible impeller pump can be used for freshwater and salt water transfer, and is ideal for bilge and waste water on any type of boat. The pump is self priming to 5 feet (1.5 m). The BUna-N Flexible Impeller has high performance and long life, and can tolerate impurities (max 5 mm), but not abrasive particles. The pump can be mounted in any position. Fix the pump with suitable diameter screws corresponding to the holes on the feet/base. There are numerous fields of applications for the pump, however DO NOT pump FLAMMABLE LIQUIDS with this pump. The pump can operate on a continuous cycle if it does not exceed the maximum pressure and temperature limits. The use of an inlet filter is recommended especially with fluids containing impurities. Replace the Flexible Impeller every season or every 500 hours. The maximum temperature for this pump is 104 degrees F.
WEIGHT : The Marco 162-002-13 weighs 6.2 Lbs.
Features :
Applications
Typical applications for the 16200213 include the transfer of water, the transfer of light weight lube oils, antifreeze. It can be used with freshwater and sea water to a maximum of 104 degrees F 40 degrees C, as well a water containing glycols. To ensure the correct directional flow of the fluid as indicated by the arrow on the top plate, it is necessary to connect the positive pole of the battery supply to the red wire on the motor endcap and the negative pole to the black wire. Electrical connections must be made using adequate terminal blocks and connectors ensuring a tight fit of the electrical cables. Bad wiring can cause power losses and/or over heating of the cabling itself. THE MOTOR IS NOT EXPLOSION PROOF. Do not install the pump where flammable vapors or gases may be present. Install it in an accessible place for inspection. The pump is IP67 protection rated. The IP67 rating of the motor provides complete protection against ingress of dust and airborne particles, as well as protection against water and liquids, up to and including immersion in up to one meter of water. It is good practice to avoid any pump contact with water splashes possibly causing water seepage into the motor with high risk of internal oxidation and/or short circuit. The electrical installation of the pump must include a protection fuse which is suitably rated as indicated on the motor label. The average life span of the motor brushes is approximately 2500 hours under normal operating conditions. Stoppages are possible due to brush wear and tear after such a time .PERIOD Avoid running the pump dry for more than a few minutes. Pumps found defective that have run dry in the absence of fluid are not covered by warranty.
