Marco # 164-060-12 Bronze Gear Pump 26 L/Min
Marco # 164-060-12

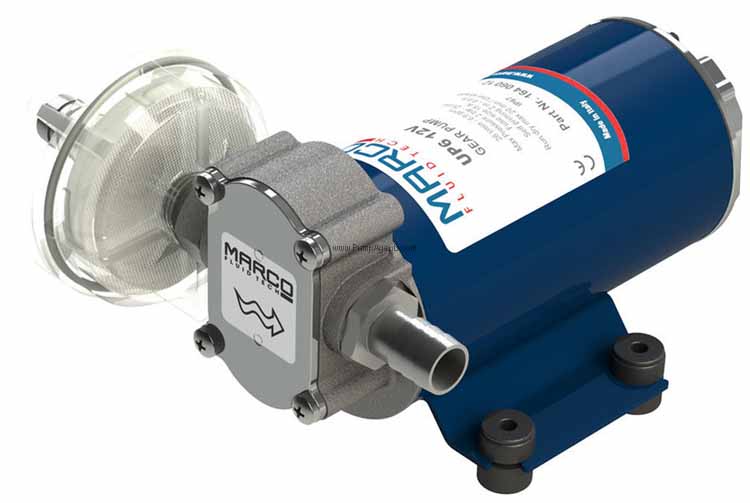

Marco catalog # 164-060-12, Self Priming Bronze Gear Pump Motor, rated for 6.87 GPM (26 l/min), nickel-plated brass construction, helical bronze gears, stainless steel Shaft. Motor is 12 Volts DC. Motor has IP 67 Protection. Inlet Port is 1/2 inch BSP, Discharge Port is 1/2 inch BSP. Catalog # UP6(12V).
Price : $ 472.67
Product Information :
The Marco 164-060-12 is a nickel-plated brass Self Priming Bronze Gear Pump, rated for 6.87 GPM (26 l/min), with helical Bronze gears, 1/2 inch BSP Ports, coupled to a 12 Volts DC Motor. This self-priming electric pump can be used for the transfer of many different liquids of a varied nature. The pump is self priming to 5 feet (1.5 m). The pumping elements are made up of bronze gears which can run dry for brief periods. It comes equipped with an in-line filter on the inlet side. The pump can be mounted in any position. Fix the pump with suitable diameter screws corresponding to the holes on the feet/base. There are numerous fields of applications for the pump, however DO NOT pump FLAMMABLE LIQUIDS with this pump. The pump can operate on a continuous cycle if it does not exceed the maximum pressure and temperature limits. The maximum temperature for this pump is 185 degrees F.
WEIGHT : The Marco 164-060-12 weighs 7.1 Lbs.
Features :
Applications
Typical applications for the 16406012 include the transfer of diesel fuel between tanks, refuelling of tractors and earth moving equipment, transfer of water, transfer of light weight lube oils, antifreeze. To ensure the correct directional flow of the fluid as indicated by the arrow on the top plate, it is necessary to connect the positive pole of the battery supply to the red wire on the motor endcap and the negative pole to the black wire. Electrical connections must be made using adequate terminal blocks and connectors ensuring a tight fit of the electrical cables. Bad wiring can cause power losses and/or over heating of the cabling it self. THE MOTOR IS NOT EXPLOSION PROOF. Do not install the pump where flammable vapours or gases may be present. Install it in an accessible place for inspection. The pump is IP67 protection rated. The IP67 rating of the motor provides complete protection against ingress of dust and airborne particles, as well as protection against water and liquids, up to and including immersion in up to one meter of water. It is good practice to avoid any pump contact with water splashes possibly causing water seepage into the motor with high risk of internal oxidation and/or short circuit. The electrical installation of the pump must include a protection fuse which is suitably rated as indicated on the motor label. The average life span of the motor brushes is approximately 2500 hours under normal operating conditions. Stoppages are possible due to brush wear and tear after such a time .PERIOD Avoid running the pump dry for more than a few minutes. Pumps found defective that have run dry in the absence of fluid are not covered by warranty.
