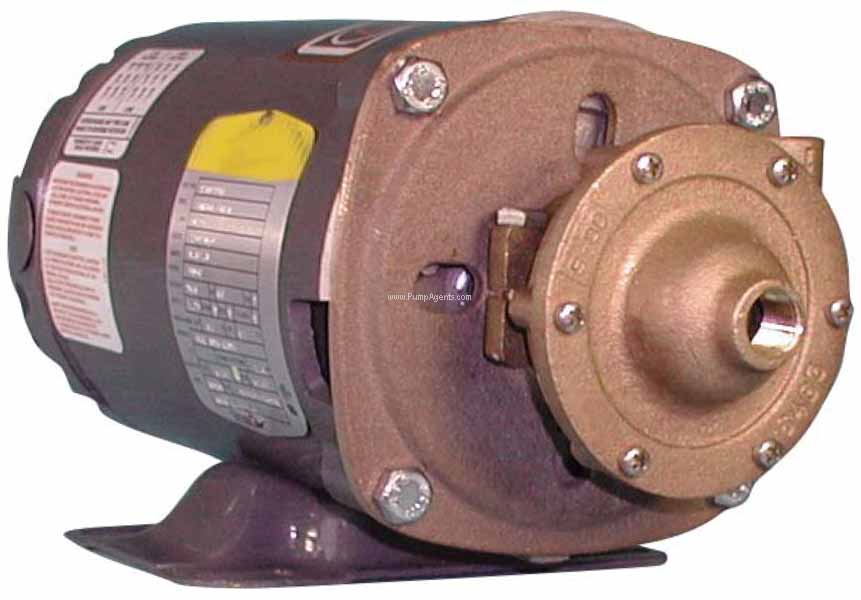

Oberdorfer # 101MPF57 Bronze Centrifugal Pump and Motor 1/3 HP

Oberdorfer Pump 101MPF57

Oberdorfer # 101MPF57

Oberdorfer catalog # 101MPF57, Bronze Centrifugal Pump and motor unit, Bronze construction, Bronze impeller, Stainless Steel Shaft, Buna Mechanical Seal. Motor is 1/3 Horsepower, 3450 RPM, 230/460 Volts, Three Phase, ODP (Open Drip Proof). Inlet Port is 3/8 Inch NPT Inlet, Discharge Port is 3/8 Inch NPT Outlet.

Price : $ 1314.85

Qty :

Same Day (2 in stock)



Product Information :

The'Oberdorfer'101MPF57'is'a'Bronze'Centrifugal'Pump'and'motor'unit,'with'Bronze'Impeller,'Buna'Mechanical'Seal,'Stainless'Steel'shaft,'3/8'Inch'NPT'Inlet'by'3/8'Inch'NPT'Outlet'Ports,'close'coupled'to'a'1/3'Horsepower,'3450'RPM,'230/460'Volts,'Three'Phase,'ODP'(Open'Drip'Proof)'Motor.'This'close-coupled'pump'and'motor'unit'uses'a'standard'NEMA'56J'Flange'Jet'Pump'Motor'with'weld-on'base'and'threaded'shaft'end'to'accept'the'pump'impeller.'It'has'a'three'phase'motor'that'must'be'checked'out'for'proper'rotation'when'pump'is'installed,'which'is'counter-clockwise'looking'at'inlet'end'of'pump.'Interchanging'of'any'2'wires'in'a'3-phase'system'will'reverse'motor'rotation.'The'pump'uses'a'mechanical'type'shaft'seal'with'a'Buna'rubber'element.'It'is'suitable'for'water,'oils,'and'some'mild'solvents'and'it'is'limited'to'212'degrees'F.'This'long-life'centrifugal'pump'delivers'high'flows'up'to'9'GPM'with'a'maximum'pressure'of'12'psi.'These'centrifugal'pumps'are'not'self-priming.'They'must'be'installed'below'the'liquid'level'so'that'the'liquid'flows'to'the'pump'by'gravity'(flooded'suction).'However,'if'a'foot'valve'is'used'at'the'beginning'of'the'suction'line,'and'all'air'is'bled'from'the'pump'by'manual'priming,'the'pump'will'lift'on'the'suction'side'up'to'15'feet.'Such'a'system'relies'entirely'on'the'non-leaking'foot'valve'for'starting'capability.'This'pump'operates'by'liquid'entering'at'the'center'and'being'thrown'outward'radially'by'centrifugal'force.'The'impeller'is'not'in'contact'with'other'pump'parts'resulting'in'quiet,'efficient'pumping'action.'The'flow'produced'is'not'positive'which'permits'the'discharge'line'to'be'shut'off'completely'without'danger'of'overloading'motors'or'bursting'lines.'Consequently,'a'relief'valve'is'not'required.'

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft:
Stainless Steel
Shaft Seal:
Buna Mechanical Seal
Port Size:
Inlet Port is 3/8 Inch NPT Inlet, Discharge Port is 3/8 Inch NPT Outlet.
Motor Specs :
1/3 Horsepower, 3450 RPM, 230/460 Volts, Three Phase, ODP (Open Drip Proof).

Applications

There are many applications that the Oberdorfer 101MPF57 are used in. This pump is typically used as a standard pump in the Marine Air Conditioning Industry. The special pump alloys used in this pump provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Viscous liquids with a maximum viscosity of 2000 Saybolt Seconds Universal can be pumped, however, when pumping viscous liquids as compared with water, a reduction in flow and pressure occurs and the required horsepower rate increases. Liquids heavier than water require additional horsepower in direct proportion to the increase in specific gravity. Liquids contaminated with small solids or abrasives can be handled, but a reduction in mechanical seal life must be expected. This pump will pump continuously, producing high flow rates under lowhead conditions. Designed for continuous lowpressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications and other generalpurpose pumping compatible with pump component materials where no suction lift or no selfpriming is required.
