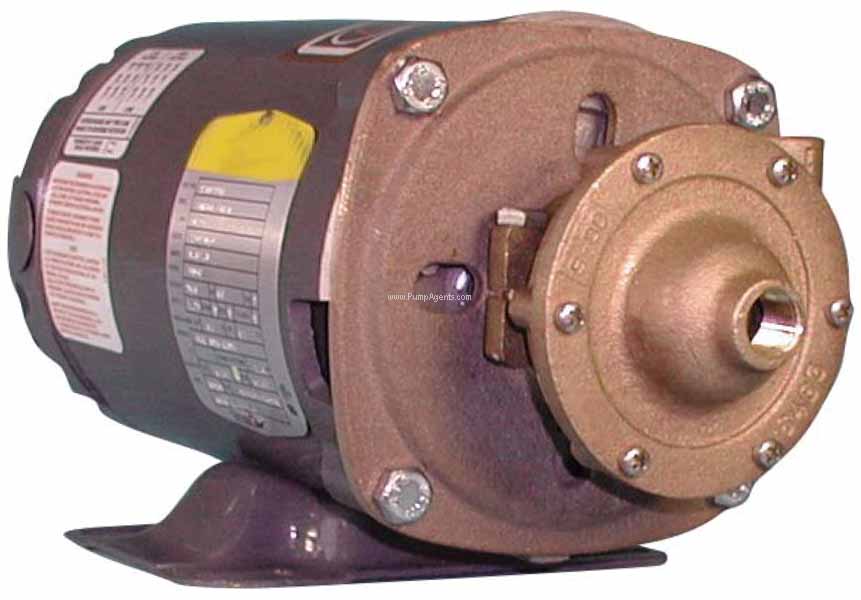

Oberdorfer # 101MS-10F13 Bronze Centrifugal Pump and Motor 1/3 HP
Oberdorfer # 101MS-10F13
Oberdorfer catalog # 101MS-10F13, Bronze Centrifugal Pump and motor unit, Bronze construction, Bronze impeller, Stainless Steel Shaft, Viton Mechanical Seal. Motor is 1/3 Horsepower, 3450 RPM, 115 Volts, Single Phase, ODP (Open Drip Proof). Inlet Port is 3/8 Inch NPT Inlet, Discharge Port is 3/8 Inch NPT Outlet.
Price : $ 1217.57
Product Information :
The'Oberdorfer'101MS-10F13'is'a'Bronze'Centrifugal'Pump'and'motor'unit,'with'Bronze'Impeller,'Viton'Mechanical'Seal,'Stainless'Steel'shaft,'3/8'Inch'NPT'Inlet'by'3/8'Inch'NPT'Outlet'Ports,'close'coupled'to'a'1/3'Horsepower,'3450'RPM,'115'Volt,'Single'Phase,'ODP'(Open'Drip'Proof)'Motor.'This'close-coupled'pump'and'motor'unit'uses'a'standard'NEMA'56J'Flange'Jet'Pump'Motor'with'weld-on'base'and'threaded'shaft'end'to'accept'the'pump'impeller.'It'has'a'single'phase'motor'that'is'non-reversible'and'is'wired'for'the'proper'pump'rotation'which'is'counter-'clockwise'looking'at'inlet'end'of'pump.'The'pump'uses'a'mechanical'type'shaft'seal'with'a'Viton'rubber'element.'It'is'suitable'for'water,'severe'solvents,'difficult'chemicals,'and'elevated'temperatures.'This'long-life'centrifugal'pump'delivers'high'flows'up'to'9'GPM'with'a'maximum'pressure'of'12'psi.'These'centrifugal'pumps'are'not'self-priming.'They'must'be'installed'below'the'liquid'level'so'that'the'liquid'flows'to'the'pump'by'gravity'(flooded'suction).'However,'if'a'foot'valve'is'used'at'the'beginning'of'the'suction'line,'and'all'air'is'bled'from'the'pump'by'manual'priming,'the'pump'will'lift'on'the'suction'side'up'to'15'feet.'Such'a'system'relies'entirely'on'the'non-leaking'foot'valve'for'starting'capability.'
Features :
Parts and Accessories for Oberdorfer model 101MS-10F13
Impeller :
Catalog # 6589, Impeller
Price: $ 117.00
Shaft Seal :
Catalog # 32210, Seal Assy FKM
Price: $ 187.00
Applications
There are many applications that the Oberdorfer 101MS10F13 are used in. This pump is typically used as a standard pump in the Marine Air Conditioning Industry. The special pump alloys used in this pump provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Viscous liquids with a maximum viscosity of 2000 Saybolt Seconds Universal can be pumped, however, when pumping viscous liquids as compared with water, a reduction in flow and pressure occurs and the required horsepower rate increases. Liquids heavier than water require additional horsepower in direct proportion to the increase in specific gravity. Liquids contaminated with small solids or abrasives can be handled, but a reduction in mechanical seal life must be expected. This pump will pump continuously, producing high flow rates under lowhead conditions. Designed for continuous lowpressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications and other generalpurpose pumping compatible with pump component materials where no suction lift or no selfpriming is required. This pump operates by liquid entering at the center and being thrown outward radially by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines. Consequently, a relief valve is not required.
