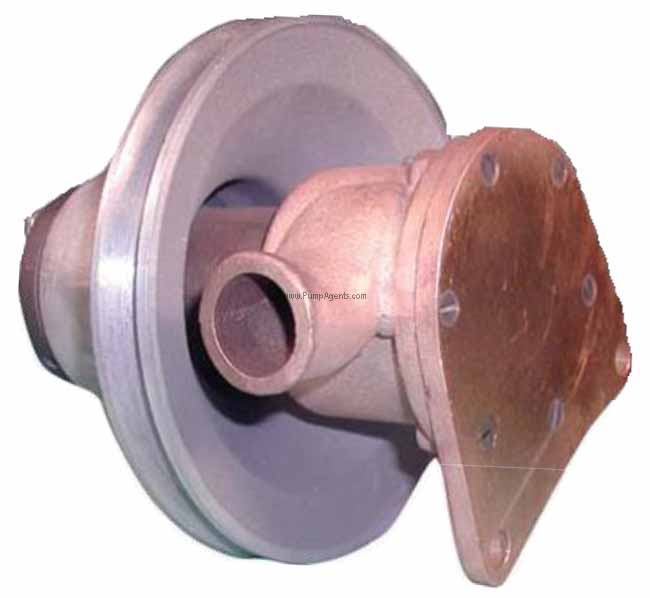

Oberdorfer # 402M-03 Engine Cooling Pump

The Oberdorfer 402M-03 is a Bronze Engine Cooling Pump end only, including single 1/2 inch A groove Pulley, with a Neoprene Impeller, Buna-N Mechanical Seal, 1-1/4 inch ID Hose Ports. This is a marine engine cooling pump that is designed primarily for Daytona Marine Engine using Chevrolet Blocks NO 327 and 427, American Marine LTD using John Deere Block NO JD6404 DR-15 and GMC Block Toroflow 63701893, and is adaptable to other engines using these blocks. This bronze pump is corrosion resistant, is constructed from marine quality bronze and stainless steel for ruggedness and reliability, and features a high chrome nickel stainless steel shaft. The Mechanical Seal in this pump has a Buna N Elastomer, a Stainless Cage and a Carbon Graphite/Ceramic Wearface. Other features of this pump are two sealed extra capacity ball bearings that are spaced for maximum load ability with teflon barrier seals that protect the ball bearings, and a shaft slinger that also provides additional bearing protection. This Pump has one moving part - a tough, long-lived, wear-resistant flexible impeller lubricated by the liquid being pumped. No metal-to-metal pumping action - no gears to jam, clog or become noisy. These pumps are designed to be fully serviceable and after long use can be restored to like new condition, avoiding complete pump replacement. The impeller and cam are easily replaced. The Flexible Impeller in this pump generates high rubbing friction unless lubricated by the liquid being pumped. A lack of liquid will cause the impeller to degrade rapidly. This pump can be driven with either a direct drive with a flexible coupling or a pulley drive can be used. Make sure both flexible coupling halves are properly aligned, and when using a pulley, make sure you do not overtighten the belt. On initial start-up pump must be primed to prevent dry-running of the impeller. This pump is self-priming, and will self-prime at low or high speeds. It will pump instantly, and a suction lift of 15 feet is possible when impeller is wet and pump fully primed. Suction lines must be air tight in order for pump to self prime. The Temperature limits for the Neoprene impeller in this pump is 45 degrees F to 180 degrees F ( 7 degrees C to 82 degrees C). Pumping colder water than 45 degrees F will shorten the impeller life.
