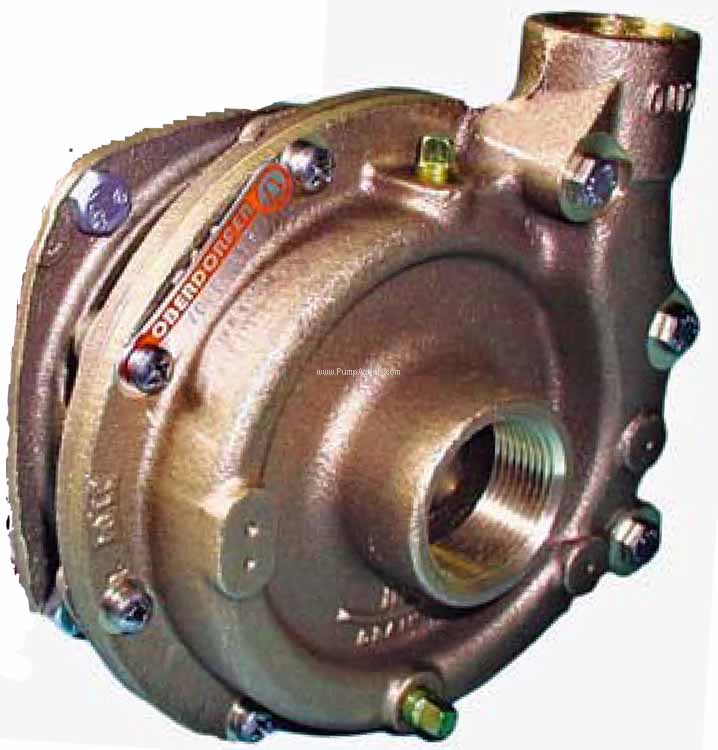

Oberdorfer # 700DP Bronze Centrifugal Pump end
Oberdorfer # 700DP
Oberdorfer catalog # 700DP, Bronze Centrifugal Pump end only, no motor, Bronze construction, 4.25 Inch Bronze impeller, 416 Stainless Steel Shaft, Buna Mechanical Seal. Inlet Port is 1-1/4 Inch NPT Inlet, Discharge Port is 1 Inch NPT Outlet.
Price : $ 787.50
Product Information :
The Oberdorfer 700DP is a Bronze Centrifugal Pump end only, no motor, with 4.25 Inch Bronze Impeller, Buna Mechanical Seal, 416 Stainless Steel shaft, 1-1/4 Inch NPT Inlet by 1 Inch NPT Outlet Ports, replacement pump end only without a Motor. This close-coupled pump end only requires a standard NEMA 56J Flange Jet Pump Motor with a weld-on base and threaded shaft end to accept the pump impeller. It requires a 3450 RPM, 1-1/2 HP motor. The pump uses a mechanical type shaft seal with a Buna rubber element. It is suitable for water, oils, and some mild solvents and it is limited to 212 degrees F. This long-life centrifugal pump delivers high flows up to 95 GPM with a maximum pressure of 30 PSI. These centrifugal pumps are not self-priming. They must be installed below the liquid level so that the liquid flows to the pump by gravity (flooded suction). However, if a foot valve is used at the beginning of the suction line, and all air is bled from the pump by manual priming, the pump will lift on the suction side up to 15 feet. Such a system relies entirely on the non-leaking foot valve for starting capability. This pump operates by liquid entering at the center and being thrown outward radially by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines. Consequently, a relief valve is not required.
Features :
Parts and Accessories for Oberdorfer model 700DP
Impeller :
Catalog # 6521, BRONZE IMPELLER FOR 700DP
Price: $ 201.00
Shaft Seal :
Catalog # 32154, Seal Assy
Price: $ 75.60
Casing frozen or cracked ? New Pump Casing :
Catalog # 5266, BRONZE BODY FOR 70P, 700A,
Price: $ 468.00
Other Parts :
Catalog # 9797-157, O-Ring
Price: $ 6.70
Applications
There are many applications that the Oberdorfer 700DP are used in. This pump is designed for continuous lowpressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications and other generalpurpose pumping compatible with Bronze and BUNAN pump component materials where no suction lift or no selfpriming is required. The special pump alloys used in this pump provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Viscous liquids with a maximum viscosity of 2000 Saybolt Seconds Universal can be pumped, however, when pumping viscous liquids as compared with water, a reduction in flow and pressure occurs and the required horsepower rate increases. Liquids heavier than water require additional horsepower in direct proportion to the increase in specific gravity. Liquids contaminated with small solids or abrasives can be handled, but a reduction in mechanical seal life must be expected. This pump will pump continuously, producing high flow rates under lowhead conditions.
