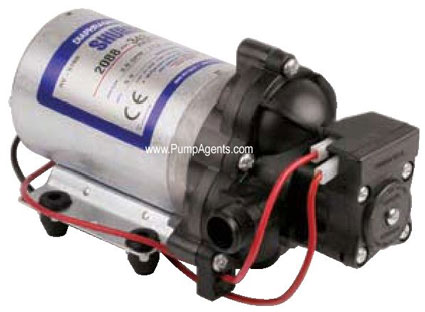

Shurflo 2088-313-544 Transfer/Spray Pump

Shurflo # 2088-313-544

Shurflo catalog # 2088-313-544, Diaphragm Pump. Polypropylene Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread.

Price : $ 677.70

Product Information :

Product Manual PDF (view)

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Bypass: 45 PSI

Check Valve: (1-Way Operation) Prevents Reverse Flow

Liquid Temperature: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.

Prime: Self-Priming Up To 8 Ft. Vertical

Weight: 6.0 Lbs (2.7 Kg)

Duty Cycle: Continuous

Features :

Pump Body:

Polypropylene

Impeller:

Viton

Shaft:

Santoprene

Port Size:

Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread.

Motor Specs :

12 Volt DC, Permanent Magnet, P/N 11-226-06, Thermally Protected.

Shurflo # 2088-313-544 Diaphragm Pump - 12 VDC
