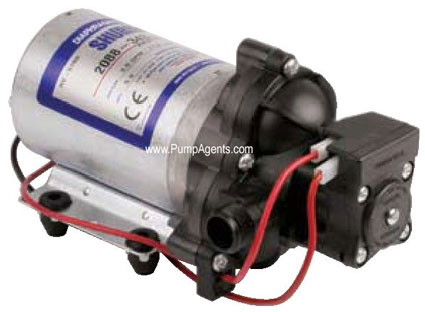

Shurflo 2088-373-500 Diaphragm Pump - Continuous Duty 24 VDC Viton

Shurflo # 2088-373-500

Shurflo catalog # 2088-373-500, Diaphragm Pump. Polypropylene Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread.

Price : $ 460.51

Product Information :

Product Manual PDF (view)

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

NO Pressure Switch

Bypass: 80 PSI Max.

Liquid Temperature: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.

Prime: Self-Priming Up To 8.0 Feet (2.4 Meters)Vertical

Weight: 5.0 Lbs (2.27 Kg)

Duty Cycle: Continuous

Features :

Pump Body:

Polypropylene

Impeller:

Viton

Shaft:

Santoprene

Port Size:

Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread.

Motor Specs :

24 Volt DC, Permanent Magnet, P/N 11-127-11.

Shurflo # 2088-373-500 Diaphragm Pump - 24 VDC
