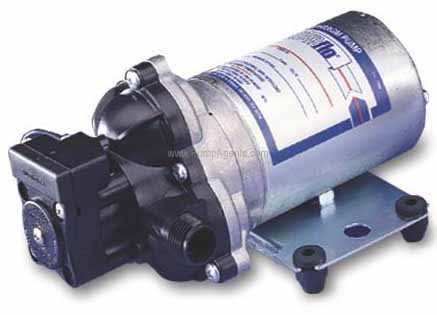

Shurflo 2088-373-554 Automatic Diaphragm Pump

Shurflo # 2088-373-554 Diaphragm Pump with Automatic Switch

Shurflo # 2088-373-554

Shurflo catalog # 2088-373-554, Diaphragm Pump with 24 Volt DC Motor and Automatic Switch. Polypropylene Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch-14 NPSM, Discharge Port is 1/2 Inch-14 NPSM. Comes with 13 Inch 4mm Molex.

Price : $ 460.51

Click Here for PARTS

Product Information :

Parts Page (click here)

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Pressure Switch: control pressure is 45 PSI

Features :

Pump Body:

Polypropylene

Impeller:

Viton

Shaft:

Santoprene

Port Size:

Inlet Port is 1/2 Inch-14 NPSM, Discharge Port is 1/2 Inch-14 NPSM.

Motor Specs :

24 Volt DC. 13 Inch 4mm Molex.

Parts and Accessories for Shurflo model 2088-373-554

Check Valve Kit :

Catalog # 94-237-05, CHECK VALVE

Price: $ 37.36

Upper Housing Kit :

Catalog # 94-231-30, HOUSING POLY

Price: $ 19.74

Valve Assembly Kit :

Catalog # 94-232-05, VITON VALVES 2088-XXX

Price: $ 71.46

Diaphragm/Drive Kit :

Catalog # 94-238-03, DIAPHRAGM KIT

Price: $ 46.20

Upper Housing Assembly Kit :

Catalog # 94-231-05, FRONT HSG VTN 45 PSI

Price: $ 89.32
