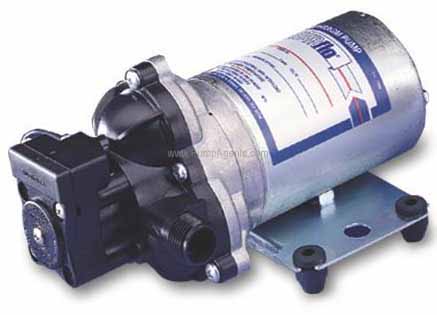

Shurflo 2088-483-124 Diaphragm Pump - 36 VDC Santoprene Valves 3.3 GPM

Shurflo # 2088-483-124 Diaphragm Pump - 36 VDC

Shurflo # 2088-483-124

Shurflo catalog # 2088-483-124, Diaphragm Pump. Polypropylene Pump Body, Santoprene Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread. 3.3 GPM open flow.

Price : $ 609.69

Click Here for PARTS

Product Information :

Parts Page (click here)

Product Manual PDF (view)

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Bypass: 140 PSI Max.

Check Valve: (1-Way Operation) Prevents Reverse Flow

Liquid Temperature: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.

Prime: Self-Priming Up To 9 Ft. Vertical

Weight: 4.8 Lbs (2.18 Kg)

Duty Cycle: Continuous

Features :

Pump Body:

Polypropylene

Impeller:

Santoprene

Shaft:

Santoprene

Port Size:

Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread.

Motor Specs :

36 Volt DC, Permanent Magnet, P/N 11-179-00. Wire: 12.5 Inch x 16AWG wires with Switch.

Shurflo # 2088-483-124 Diaphragm Pump - 36 VDC
