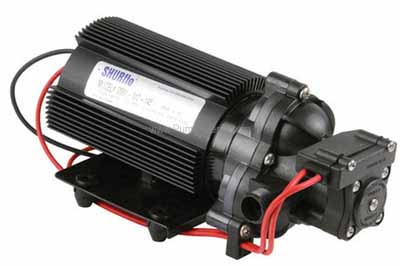

Shurflo # 2088-514-145 Diaphragm Pump with Automatic Switch - 12 VDC

Shurflo Pump 2088-514-145

Shurflo # 2088-514-145

Shurflo catalog # 2088-514-145, Diaphragm Pump with 12 Volt DC Motor and 45 PSI Automatic Demand Switch. Polypropylene Pump Body, Santoprene Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread. 3.6 GPM open flow.

Price : $ 282.50

Qty :

Same Day (8 in stock)

Click Here for PARTS



Product Information :

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Pressure Switch: Splash-Proof, Adjustable from 30 to 50 PSI.. Factory Set at 45 PSI Shut-Off, Turn On 25 PSI

Bypass: 45 + 60 PSI Springs

Check Valve: (1-Way Operation) Prevents Reverse Flow

Liquid Temperature: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.

Prime: Self-Priming Up To 9.0 Ft. Vertical

Weight: 6.8 Lbs (3.1 Kg)

Duty Cycle: Continuous

Approvals: N.S.F. Listed

Features :

Pump Body:
Polypropylene
Impeller:
Santoprene
Shaft:
Santoprene
Port Size:
Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread.
Motor Specs :
12 Volt DC, Permanent Magnet, P/N 11-185-06, Thermally Protected. Wire: 37 Inch x 14AWG Wire.

Parts and Accessories for Shurflo model 2088-514-145


Check Valve Kit :

Catalog # 94-237-00, CHECK VALVE

Price: $ 19.86

Qty :

Can Ship : Same Day (10 in stock)


Upper Housing Kit :

Catalog # 94-231-30, HOUSING POLY

Price: $ 19.74

Qty :

Can Ship : Same Day (14 in stock)


Diaphragm/Drive Kit :

Catalog # 94-238-03, DIAPHRAGM KIT

Price: $ 46.20

Qty :

Can Ship : Same Day (10 in stock)


Upper Housing Assembly Kit :

Catalog # 94-231-10, SWITCH W/UPPER HSG 2088

Price: $ 100.38

Qty :

Can Ship : Same Day (21 in stock)

Applications

Potable Water
