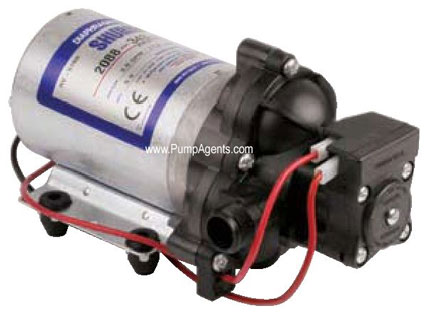

Shurflo # 2088-584-534 Diaphragm Pump with Automatic Switch - 24 VDC

Shurflo Pump 2088-584-534

Shurflo # 2088-584-534

Shurflo catalog # 2088-584-534, Diaphragm Pump with 24 Volt DC Motor and Automatic Switch. Polypropylene Pump Body, Viton Valves, Santoprene NET WEIGHT: 6.4 Lbs (2.9 Kg) Diaphragm. Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread.

Price : $ 460.51

Qty :

4 Weeks (out of stock)



Product Information :

2088-584-534 information Product Manual PDF (view)

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Pressure Switch: Adjustable from 30 to 50 PSI.. Factory Set at 45 PSI Shut-Off, Turn On 25 PSI

Bypass: 80 PSI Max.

Check Valve: (1-Way Operation) Prevents Reverse Flow

Liquid Temperature: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.

Prime: Self-Priming Up To 9.0 Ft. Vertical

Weight: 6.4 Lbs (2.9 Kg)

Duty Cycle: Continuous

Features :

Pump Body:
Polypropylene
Impeller:
Viton
Shaft:
Santoprene NET WEIGHT: 6.4 Lbs (2.9 Kg)
Port Size:
Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread.
Motor Specs :
24 Volt DC, Permanent Magnet, P/N 11-181-00, Thermally Protected.

Parts and Accessories for Shurflo model 2088-584-534

Applications

Industrial
