Shurflo 2088-712-534 Automatic Demand Pump

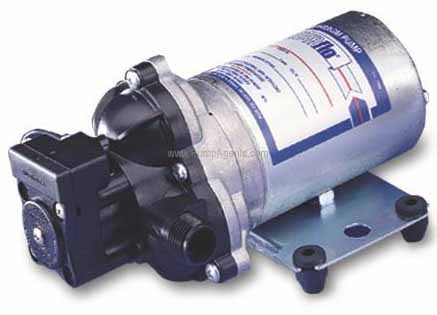

Shurflo # 2088-712-534 Diaphragm Pump with Automatic Switch

Shurflo # 2088-712-534

Shurflo catalog # 2088-712-534, Diaphragm Pump with 12 Volt DC Motor and Automatic Switch. Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch-14 NPSM, Discharge Port is 1/2 Inch-14 NPSM.

Price : $ 460.51

Click Here for PARTS

Product Information :

Parts Page (click here)

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Pressure Switch: control pressure is 45 PSI

Features :

Pump Body:

Polypropylene

Impeller:

EPDM

Shaft:

Santoprene

Port Size:

Inlet Port is 1/2 Inch-14 NPSM, Discharge Port is 1/2 Inch-14 NPSM.

Motor Specs :

12 Volt DC. Wire: 36 Inch x 14AWG Wire.

Parts and Accessories for Shurflo model 2088-712-534

Check Valve Kit :

Catalog # 94-237-00, CHECK VALVE

Price: $ 19.86

Upper Housing Kit :

Catalog # 94-231-30, HOUSING POLY

Price: $ 19.74

Valve Assembly Kit :

Catalog # 94-232-06, POLYPRO EPDM VLV KIT

Price: $ 29.15

Diaphragm/Drive Kit :

Catalog # 94-238-02, DIA/DRIVE KIT 2.5 CAM

Price: $ 63.43

Upper Housing Assembly Kit :

Catalog # 94-231-10, SWITCH W/UPPER HSG 2088

Price: $ 100.38
