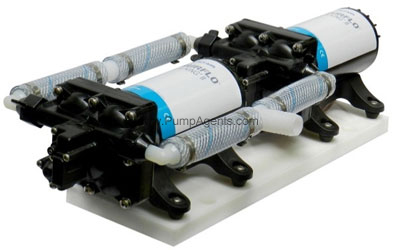

Shurflo 4558-153-E75 - High Flow Pump System 12 VDC 10.0 GPM

Shurflo Pump 4558-153-E75

Shurflo # 4558-153-E75

Shurflo catalog # 4558-153-E75, HIGH FLOW PUMP SYSTEM, 2 PUMPS INLINE, 10 GPM, with 12 VDC Motor. Intermittent Duty. For fresh water only., Polypropylene Construction, close coupled to a 12 Volt DC, Electric Motor. 3/4 inch barbed discharge manifold Port Connections.

Price : $ 1314.07

Qty :

Same Day (2 in stock)



Product Information :

Product Specs :

Type: 4 Chamber Diaphragm pump

Manifold: 3/4 inch Barb, Pump Ports: 1/2 inch NPSM-Male

Liquid: 130 degrees F Max

Dry-Prime: 6 feet

Run Dry: Yes

Inlet Pressure: 30 PSI Max.

Motor: 12 Volt DC Permanent Magnet, Intermittent Duty

Protection: Thermal Overload, Automatic Restart

Fuse: Primary pump 20 Amp Recommended, Secondary pump 20 Amp Recommended, Both pumps together: 30 Amps Recommended.

Control: Primary pump: Shut-Off 55 PSI, Re-Start 40 PSI, Maximum By-Pass 65 PSI. Secondary pump: Shut-Off 45 PSI, Re-start 30 PSI

Features :

Pump Body:
Polypropylene
Impeller:
EPDM
Port Size:
3/4 inch barbed discharge manifold
Motor Specs :
12 Volt DC

Applications

The most advanced system available. Features 2 pumps operating in tandem with single 3/4 inch barbed discharge manifold. This fullyautomatic, quiet unit delivers water smoothly and consistently. Multifixture Marine fresh water system installation. This system may be used for general fresh water transfer.
