Shurflo 8000-543-236BX Automatic Diaphragm Pump

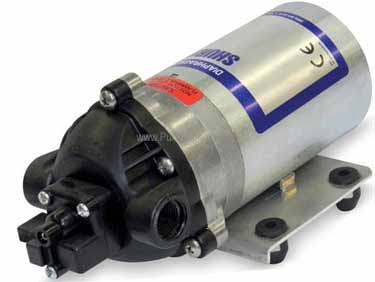

Shurflo # 8000-543-236BX Diaphragm Pump with Automatic Switch

Shurflo # 8000-543-236BX

Shurflo catalog # 8000-543-236BX, Diaphragm Pump with 12 Volt DC Motor and Automatic Switch. Polypropylene Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Discharge Port is 3/8 Inch NPT.

Price : $ 460.51

Click Here for PARTS

Product Information :

Parts Page (click here)

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Pressure Switch: control pressure is 60 PSI

Features :

Pump Body:

Polypropylene

Impeller:

Viton

Shaft:

Santoprene

Port Size:

Inlet Port is 3/8 Inch NPT, Discharge Port is 3/8 Inch NPT.

Motor Specs :

12 Volt DC. Wire: 12.5 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 8000-543-236BX

Pressure Switch Kit :

Catalog # 94-375-06, 40-60 PSI SWITCH

Price: $ 43.13

Check Valve Kit :

Catalog # 94-374-08, Check Valve

Price: $ 19.71

Upper Housing Kit :

Catalog # 94-379-00, POLYPRO UPPER HOUSING

Price: $ 29.32

Valve Assembly Kit :

Catalog # 94-390-05, VITON VALVES FOR 8000 -

Price: $ 62.36

Drive Assembly Kit :

Catalog # 94-385-32, CAM 3.0 DEG FOR 8000 &

Price: $ 78.73
