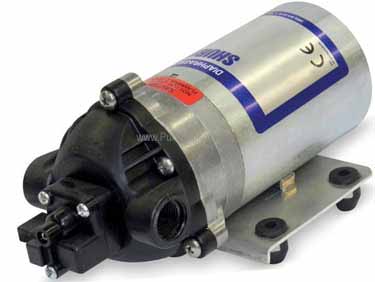

Shurflo 8002-793-238CE Automatic Diaphragm Pump

Shurflo # 8002-793-238CE Diaphragm Pump with Automatic Switch

Shurflo # 8002-793-238CE

Shurflo catalog # 8002-793-238CE, Diaphragm Pump with 12 Volt DC Motor and Automatic Switch. Nylon Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Discharge Port is 3/8 Inch NPT.

Price : $ 460.51

Click Here for PARTS

Product Information :

Parts Page (click here)

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Pressure Switch: control pressure is 100 PSI

Approvals: CE

Features :

Pump Body:

Nylon

Impeller:

EPDM

Shaft:

Santoprene

Port Size:

Inlet Port is 3/8 Inch NPT, Discharge Port is 3/8 Inch NPT.

Motor Specs :

12 Volt DC. Wire: 12.5 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 8002-793-238CE

Pressure Switch Kit :

Catalog # 94-375-18, 80-100 PSI SWITCH

Price: $ 35.98

Check Valve Kit :

Catalog # 94-374-16, CHECK VALVE EPDM

Price: $ 18.27

Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 30.65

Valve Assembly Kit :

Catalog # 94-390-06, EPDM VALVES (NSF) FOR

Price: $ 29.79

Drive Assembly Kit :

Catalog # 94-385-32, CAM 3.0 DEG FOR 8000 &

Price: $ 78.73
