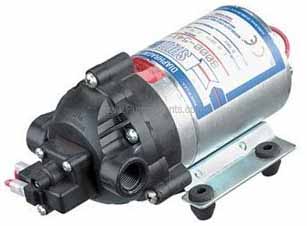

Shurflo # 8020-513-236BX Diaphragm Pump with Automatic Switch
Shurflo # 8020-513-236BX
Shurflo catalog # 8020-513-236BX, Diaphragm Pump with 115 Volt AC Motor and Automatic Switch. Polypropylene Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Discharge Port is 3/8 Inch NPT. Comes with 6 foot Cord.
Price : $ 586.11
Product Information :
Parts Page (click here)The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.
Product Specs :
Pressure Switch: control pressure is 60 PSI
Approvals: UL Listed - US & Canada
Features :
Parts and Accessories for Shurflo model 8020-513-236BX
Pressure Switch Kit :
Catalog # 94-375-05, 40-60 PSI SWITCH
Price: $ 40.11
Check Valve Kit :
Catalog # 94-374-10, CHECK VALVE 2 WAY VITON
Price: $ 17.31
Upper Housing Kit :
Catalog # 94-379-00, POLYPRO UPPER HOUSING
Price: $ 29.32
Valve Assembly Kit :
Catalog # 94-390-05, VITON VALVES FOR 8000 -
Price: $ 62.36
Diaphragm Kit :
Catalog # 94-395-06, SANTO DIAPHRAGM FOR
Price: $ 30.11
Drive Kit :
Catalog # 94-385-03, CAM ASSY 3.0
Price: $ 44.90
