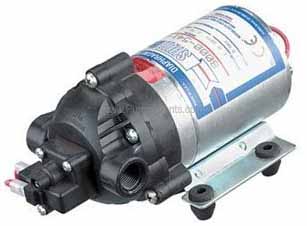

Shurflo # 8025-213-256 Diaphragm Pump with Bypass - 115 Volt AC

Shurflo Pump 8025-213-256

Shurflo # 8025-213-256

Shurflo catalog # 8025-213-256, Diaphragm Pump with 115 Volt AC Motor and with 45 PSI Bypass. 3/8 inch NPT-Female ports. Poly Housing. Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female. Comes with 6 foot Cord. Automatic Demand Pump with Internal Bypass. Pump has a 115 Volt AC Motor. 1.4 GPM open flow.

Price : $ 272.39

Qty :

Same Day (1 in stock)

Click Here for PARTS



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, and feature Chemical-resistant materials. This pump has an internal bypass. Can run dry without damage. Shurflo 8000 Series internal bypass pumps are ideal for applications where an automatic demand switch is not desired. Pumps with bypass will continue to run without damage once the bypass pressure is reached. They incorporate a triple chamber design with Viton elastomers to withstand the toughest applications. Perfect for spot sprayers, foam markers and transfer applications where smooth, consistent flow is needed.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Polypropylene
Impeller:
EPDM
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
115 Volt AC, Permanent Magnet, P/N 11-194-01, Thermally Protected. 6 foot Cord.

Parts and Accessories for Shurflo model 8025-213-256


Pressure Switch Kit :

Catalog # 94-375-06, 40-60 PSI SWITCH

Price: $ 43.13

Qty :

Can Ship : Same Day (2 in stock)


Check Valve Kit :

Catalog # 94-374-16, CHECK VALVE EPDM

Price: $ 18.27

Qty :

Can Ship : Same Day (91 in stock)


Upper Housing Kit :

Catalog # 94-379-00, POLYPRO UPPER HOUSING

Price: $ 29.32

Qty :

Can Ship : Same Day (8 in stock)


Diaphragm Kit :

Catalog # 94-395-06, SANTO DIAPHRAGM FOR

Price: $ 30.11

Qty :

Can Ship : Same Day (3 in stock)


Drive Kit :

Catalog # 94-385-03, CAM ASSY 3.0

Price: $ 44.90

Qty :

Can Ship : Same Day (2 in stock)

Applications

Water Delivery
